Zebra Children's Mark Pen

GuYZ

China · Digital Intelligence

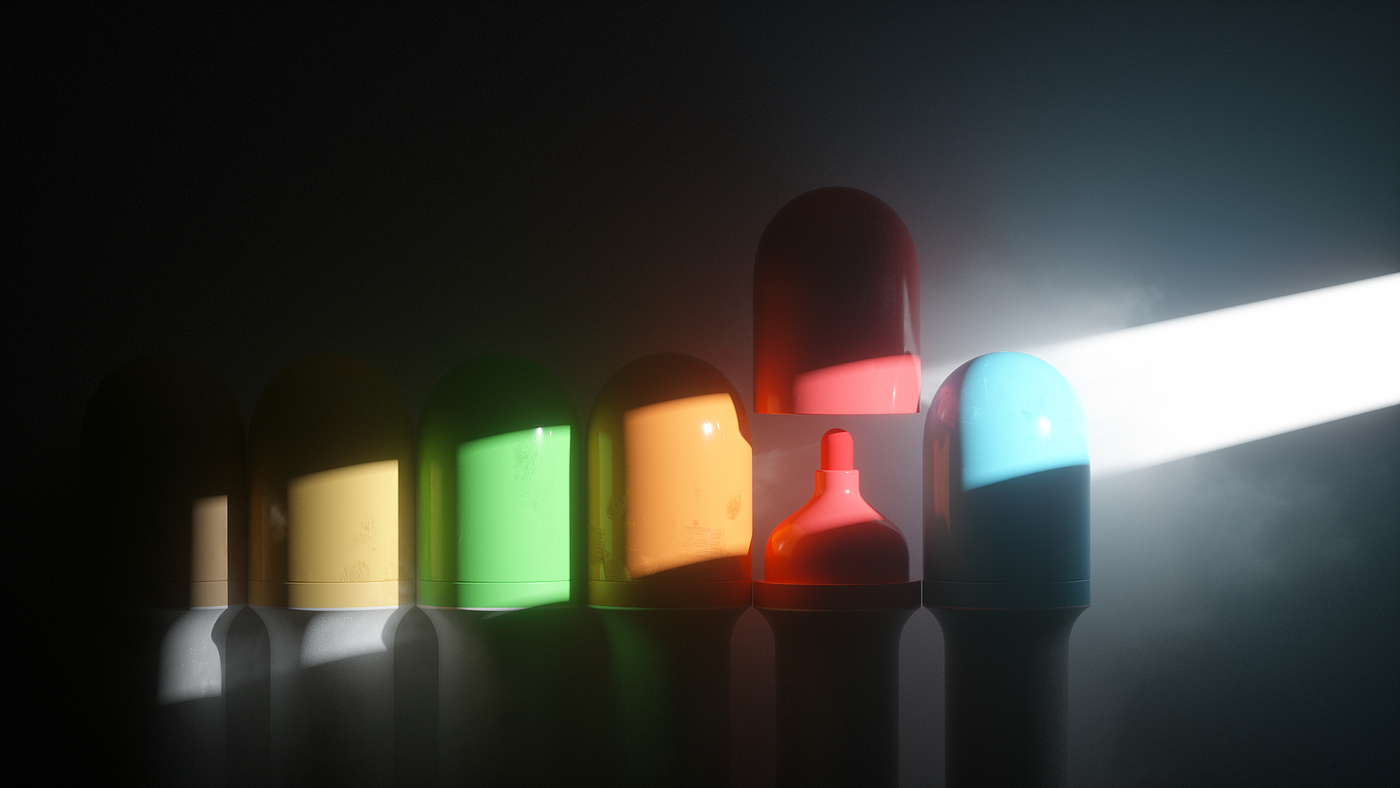

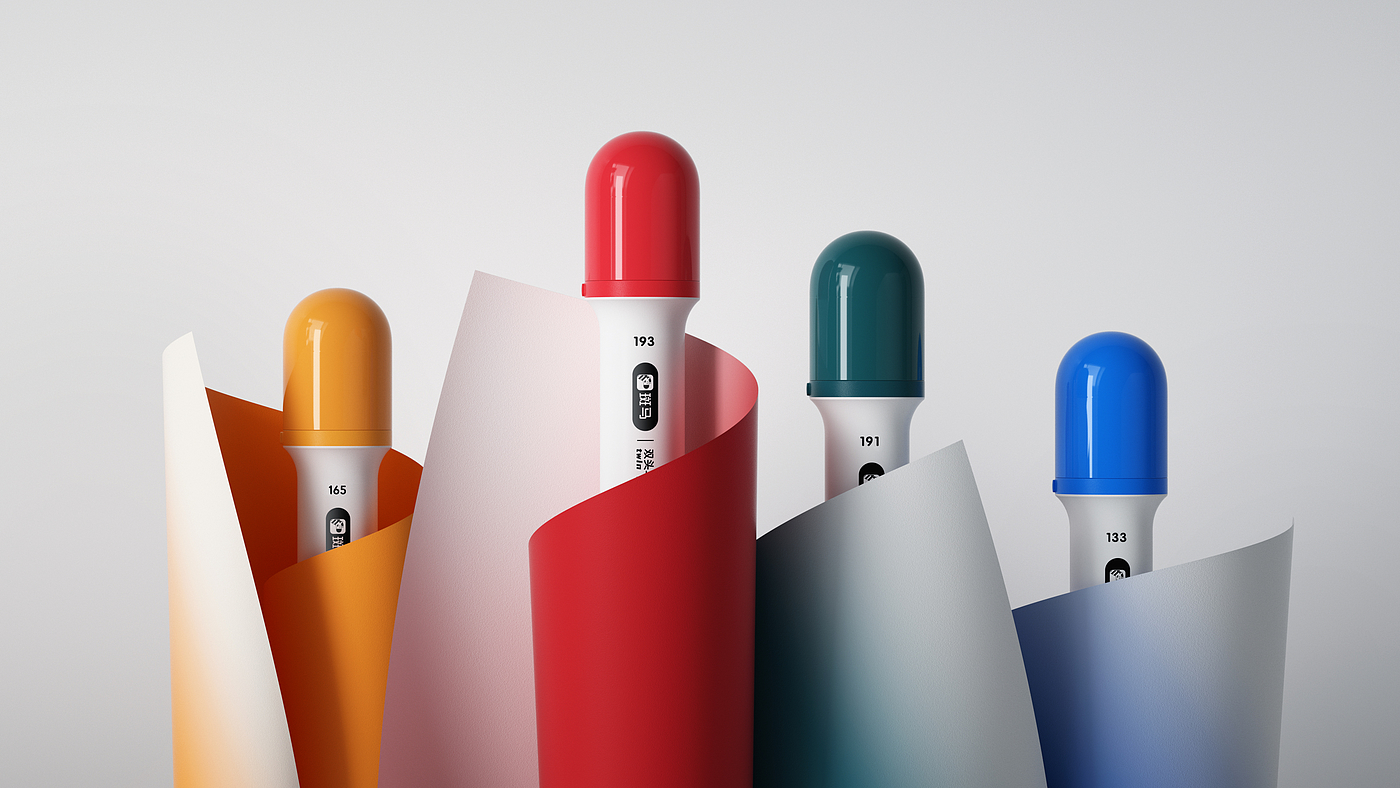

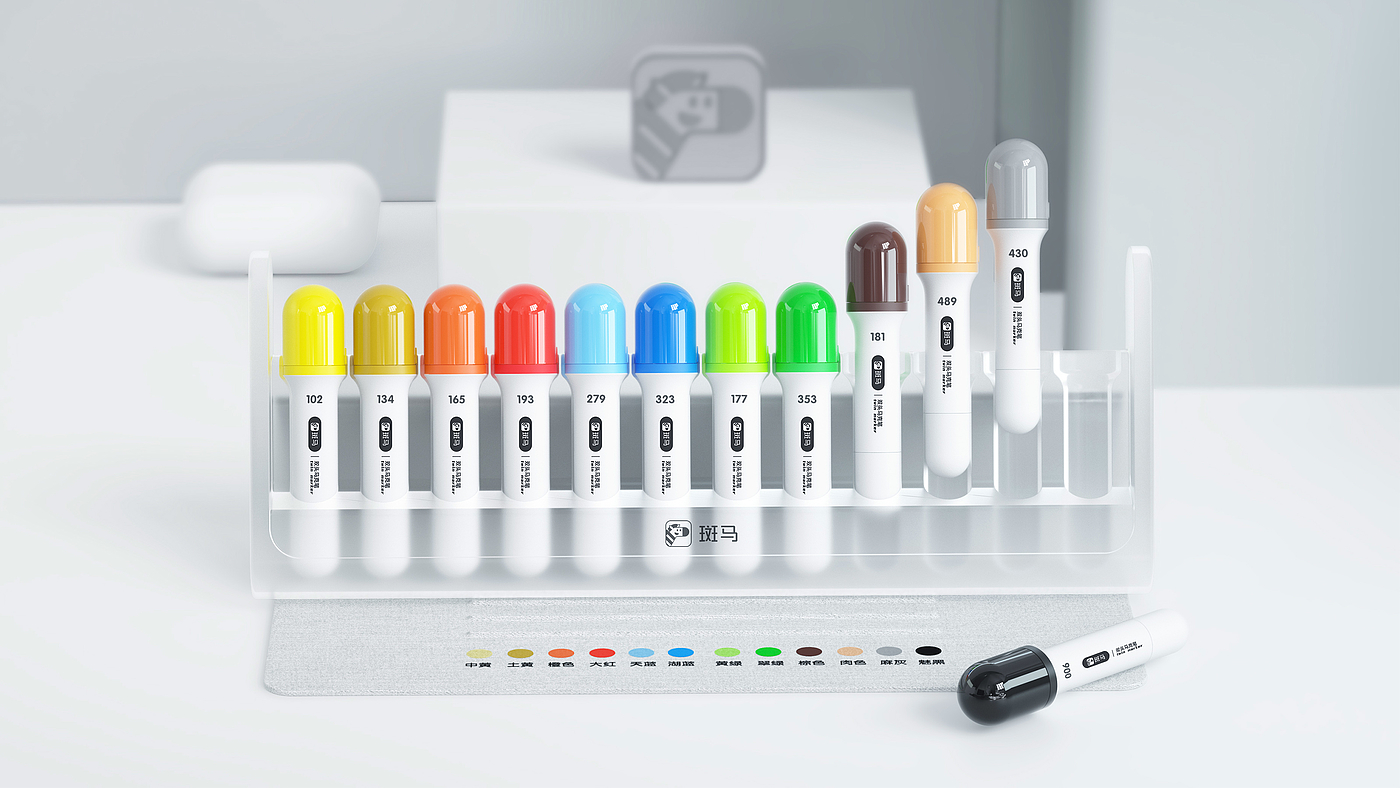

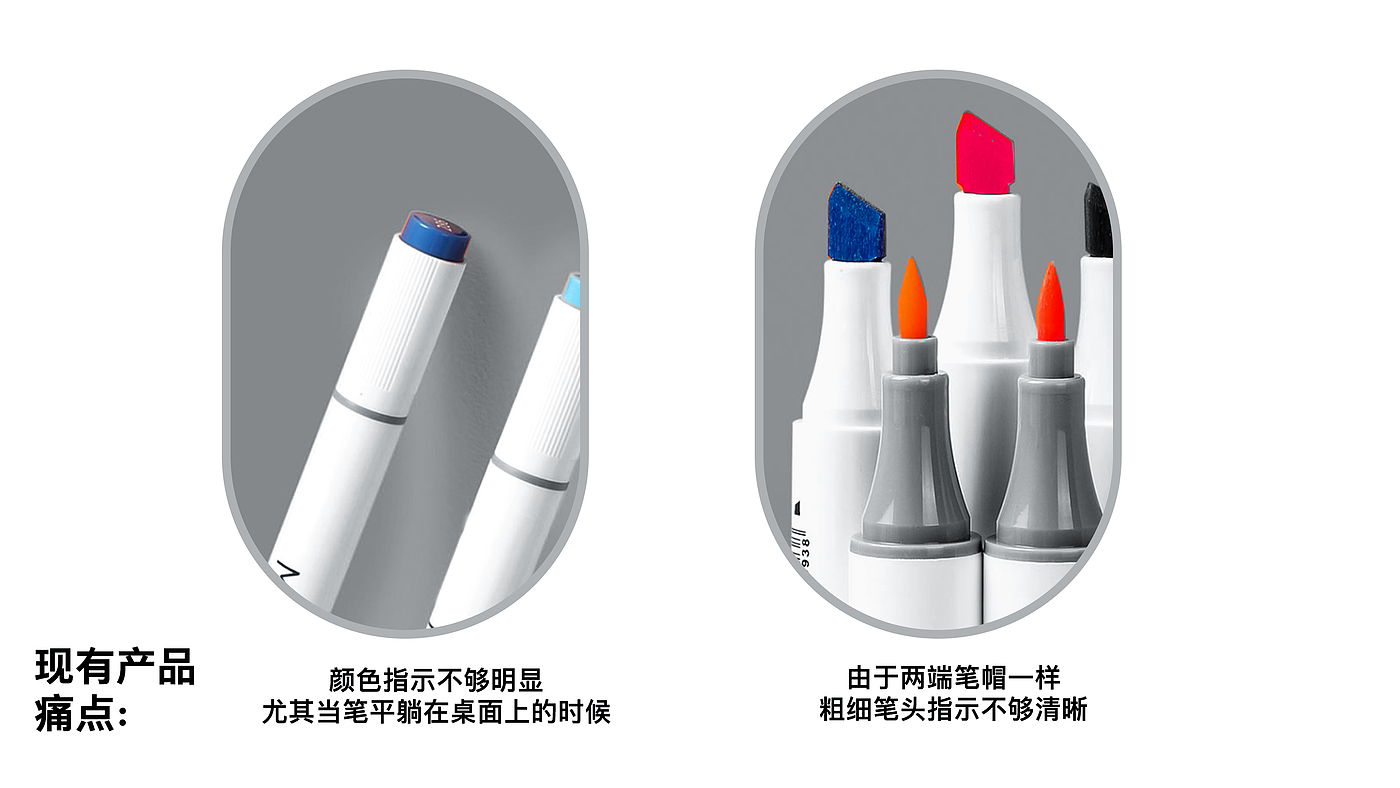

A children's exclusive marker, small and lovely, colorful. The main solution is to solve the problems of existing products. First, the color area is too small, which makes it difficult to find the color you want. Second, every time you pick up the pen, you have to stare at which side of the thick pen is the thin pen. The pause of a few seconds is always very tiring, especially if you think you are already familiar with the marker pen, pick it up and pull out the cap on the left, I think the result is coarse and fine, so I can refer to the USB that is inserted backwards every time.

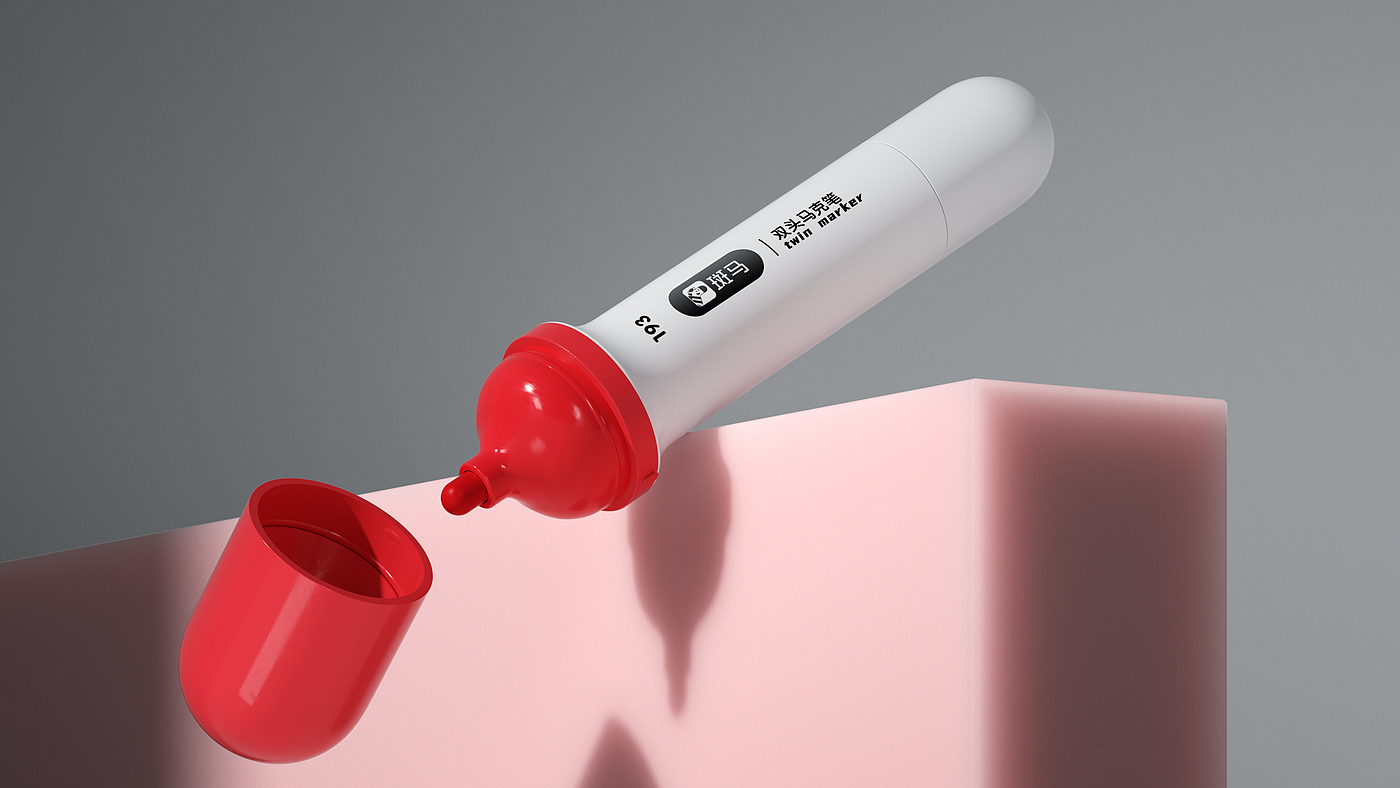

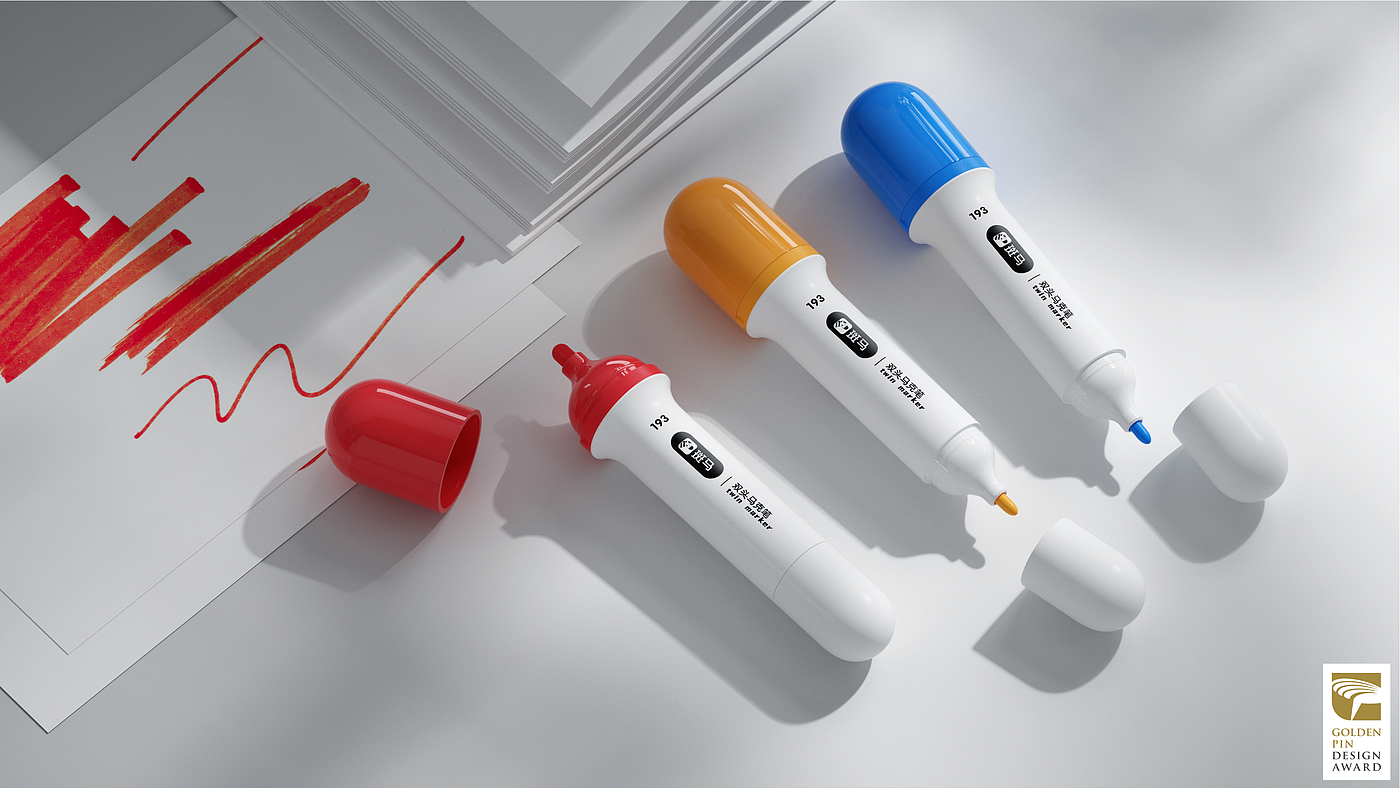

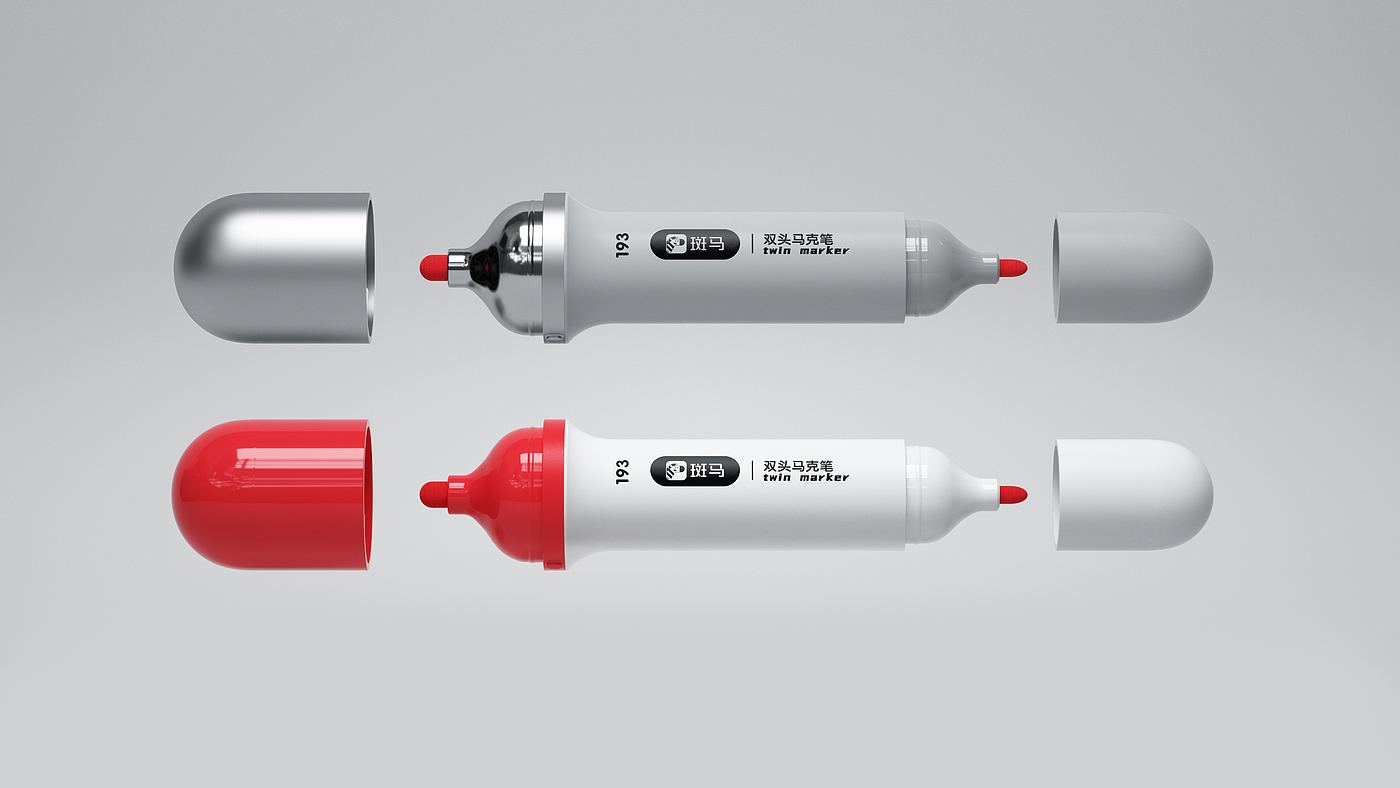

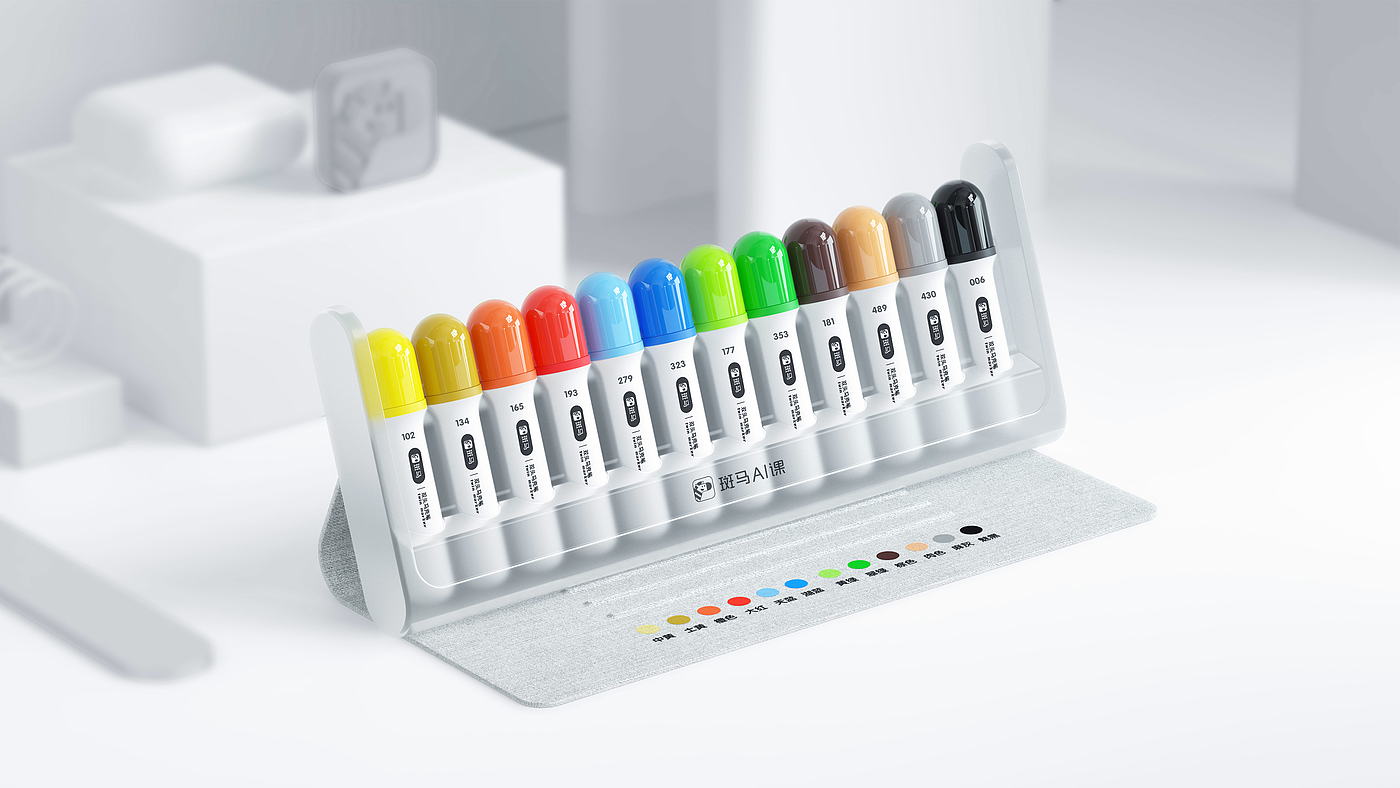

Therefore, starting from these two points, one is to increase the area of the color indication area to facilitate finding the desired color, and the other is to visually express the thickness of the pen tip from the size of the pen cap, which is clear and straightforward.

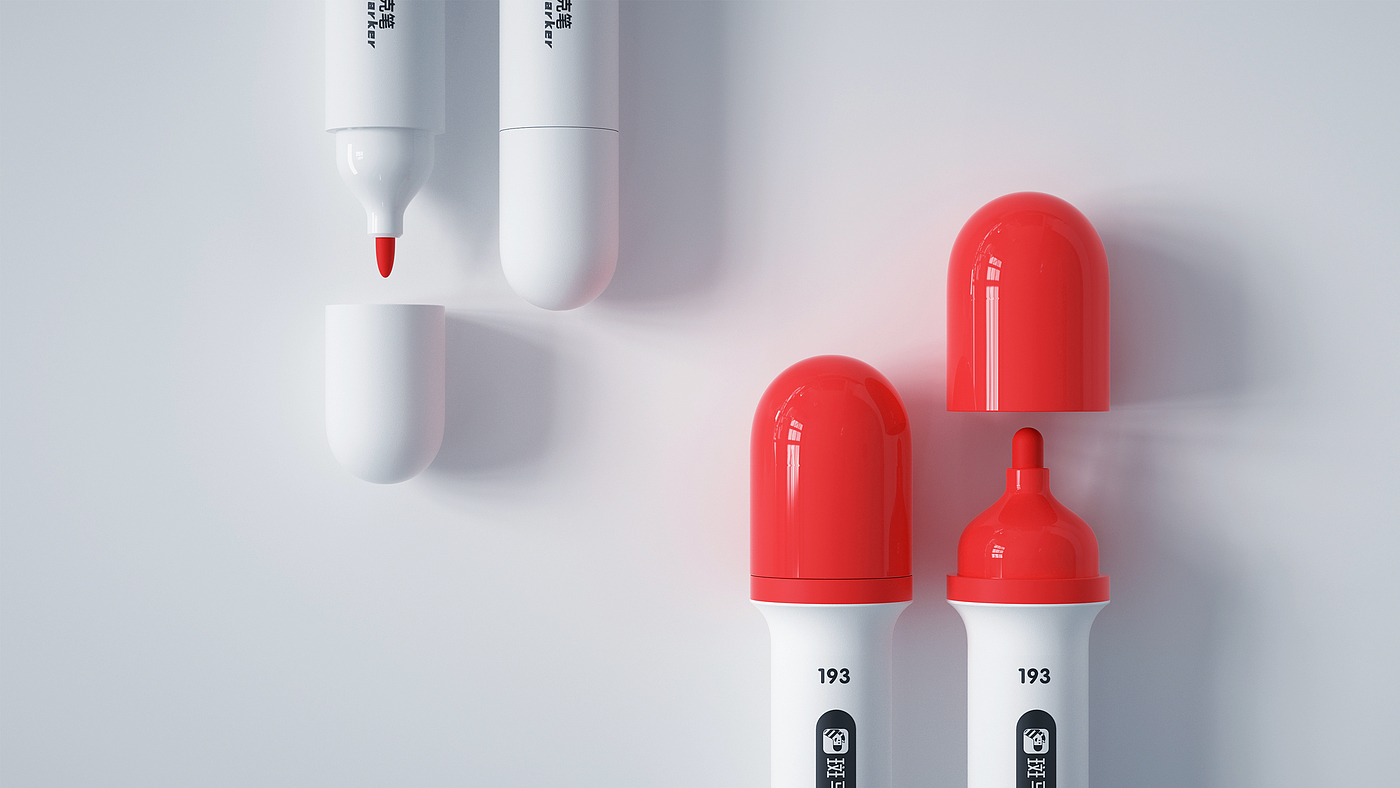

In addition, the small pen ends do not have color, so all small pen caps are common. When the children finish painting and tidy up, they can easily return to their positions without bothering to find the corresponding color.

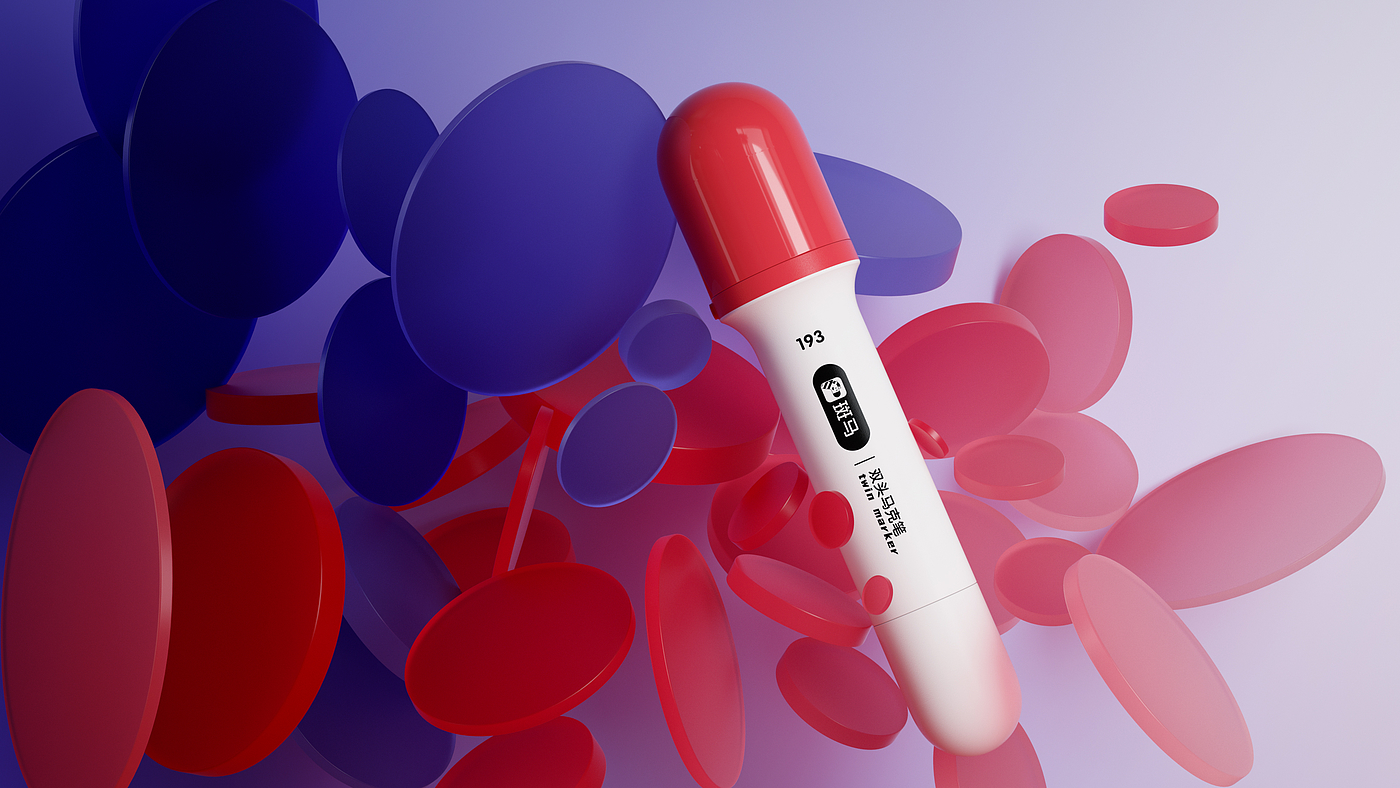

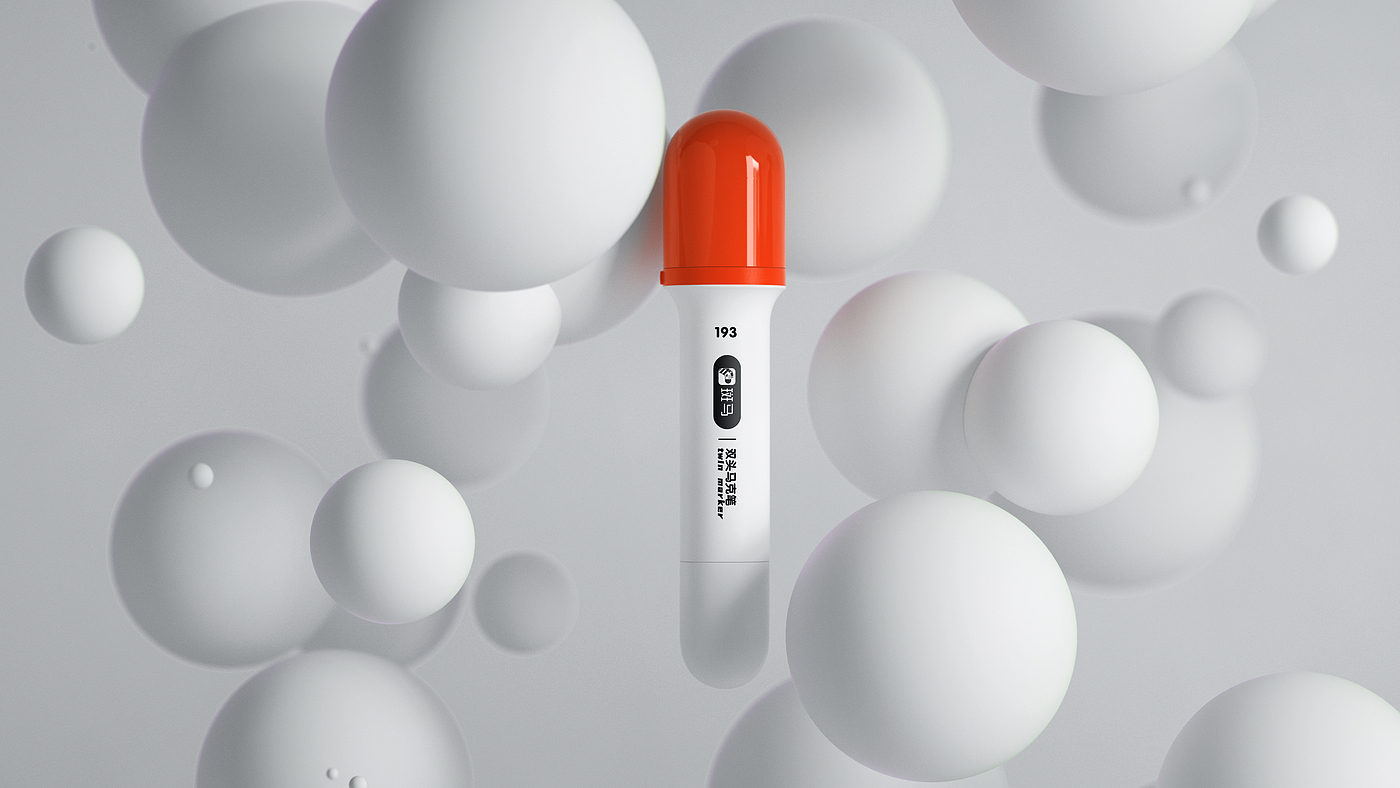

The overall shape is a bit like a match, like a light bulb, with a small proportion, which is more in line with children's aesthetics.
In terms of ergonomics, the overall diameter is much thicker than that of conventional marker pens, which is actually more friendly and easier to hold for 3-6-year-old children. Especially when using thick pen to draw, the normal holding posture is also very comfortable.

marker pen，Children's products，industrial design，c4d，

251 305

创意打灰人 2024-10-17

Hello, I like your design very much and want to cooperate in development. If you are interested, please give me a break.

GuYZ作者 2024-10-23

Hello, you can add V to communicate. Ha: 18511452016

我也说一句

walleyenere 2022-12-22

The cap is easy to get stuck in the throat.

可燃 2022-01-05

The most needed pain points for marker improvement are design students, especially those who need marker hand-painted for postgraduate entrance examination. These two pain points are especially important in the examination. If you can design a model for postgraduate entrance examination students based on this pain point needle

191****8212 2023-05-24

At present, do you feel any chicken ribs during the use of the marker?

XYID设计 2021-12-16

I am Andy Lau

GuYZ作者 2021-12-17

Hello, Hua Zi

ArcticFox 2021-12-13

After reading the instructions, it is really not poked. Although it seems to have improved a little bit, it has solved the big problem;
(If the big head is changed to a transparent pen cap, the big head does not need to match the color, but it may be easy to get dirty or something)

GuYZ作者 2021-12-13

One of the large caps is transparent and the stiffeners inside are not good-looking. In the other, the large cap is very convenient as a color indicator (you can quickly find the desired color regardless of the vertical direction). This is also a design point

墨汁达达 2021-12-09

Excellent!

Thank you

小纯洁 2021-12-06

Louis Koo, Xiansen. Hello, I like your play very much.
Now I like the products you make

GuYZ作者 2021-12-07

Thank you Welcome to continue your attention

10.9 | Koen 2021-12-06

Wow, this is nice

潇洒先生° 2021-12-01

Are they on the market? Let's have a connection.

GuYZ作者 2021-12-01

The project was finally canceled and changed to direct collection of

潇洒先生° 2021-12-03

I went to , the design was deeply helpless

Will it be better to change the material to matte plastic, and hold it in your hand with greater friction?

GuYZ作者 2021-12-04

The surface is fine etched, but it also needs to be reflective.

肥占 2021-11-25

This is the first point. If there is no support inside, it is easy to misplace. At point 2, the glue is a little thick. Just engaged in the marker stationery industry, I put forward some of my own views. Everyone learns from each other. Your design is very bold, and I dare not do it. The shape also fits the children's market.

GuYZ作者 2021-11-25

Uh-huh. Learn from each other

Sorry, I didn't see the screenshot just now. I understand what you mean. 1. Is the dislocation you said deformed after a hard pinch? If so, I think it is really at least four ribs. 2 At that time, I confirmed with MD that it seemed that the wall thickness shrinkage would not be so serious, so I hollowed out to learn from each other like this. Thank you

Yes, that's what it means. Mmm-hmm, learn from each other.

Regarding the first point, reinforcement is still more important, otherwise the air tightness of the pen mouth and cap may not be guaranteed (the water-based marker is good, and the alcohol marker is not good, the nib will dry if the air tightness is not good). I also do ID, haha, everyone will communicate with each other more in the future.

Learn about

柒 2021-12-08

This kind of atmosphere is quite good, learned

I 've learned, I 've learned

Show_CYL 2021-12-14

This is the atmosphere that the design circle should have. everyone expresses their own opinions. those who know the business can give more professional advice. those who don't can politely discuss the design ideas with the designer. don't criticize them at any time, spray them at any time. it's really boring

ZAZ 2021-12-16

Give you a compliment

Benyo 2022-08-16

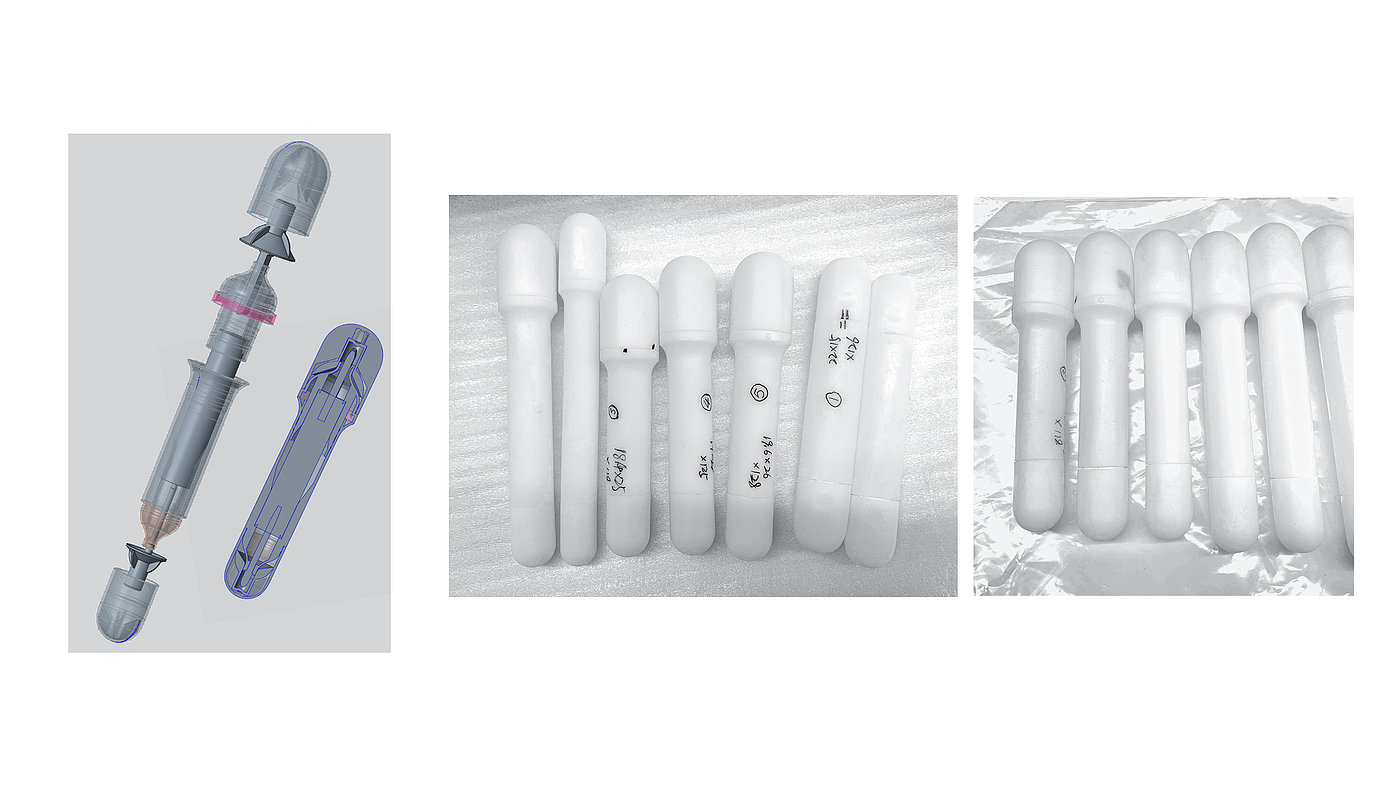

With all due respect, after reading your structural diagram, your MD did not give you serious communication. From the structural point of view, three points should be considered: the feasibility of a mold, the feasibility of production and assembly, and the feasibility of three functions,

There is a gap at the joint of the large pen head and the pen holder, which will be misplaced as soon as it is pressed down. It is recommended to reinforce it. Then the place where the pen holder is opened, the glue is thicker, and the risk of shrinkage is greater.

Thank you. There are reinforcing ribs in the large cap, and there is also a lining. When the cap is covered, the inside of the expanded part of the pen holder is guided to steal the glue. For details, please refer to the questions raised on the left side of the last picture.

橙汁 2021-11-25

How lovely (*)

Arrow 2021-11-25

The shape is very good, but I'm worried that the user experience will not be uncomfortable. Especially, the big head has to consider human-computer interaction.

There is no problem with the comfort of the hand board verification, and because the large head of the adduction arc is actually more comfortable to hold than the small head.

恐龙先生 2021-11-25

It's pretty good

估我唔岛 2021-11-24

is very nice, the cover seems to scroll everywhere, and it is perfect to add small details without scrolling.

GuYZ作者 2021-11-24

Thank you. At first, a small protrusion was added to the surface of the pen cap, but later it was found that the pen cap needed to be lined, that is, one piece should be removed. Therefore, in order to prevent rolling, the protrusion was made on the pen body, and the pen cap was lined in the upper part, that is, the center of gravity was above, so strictly speaking, I don't know if I have explained it clearly
