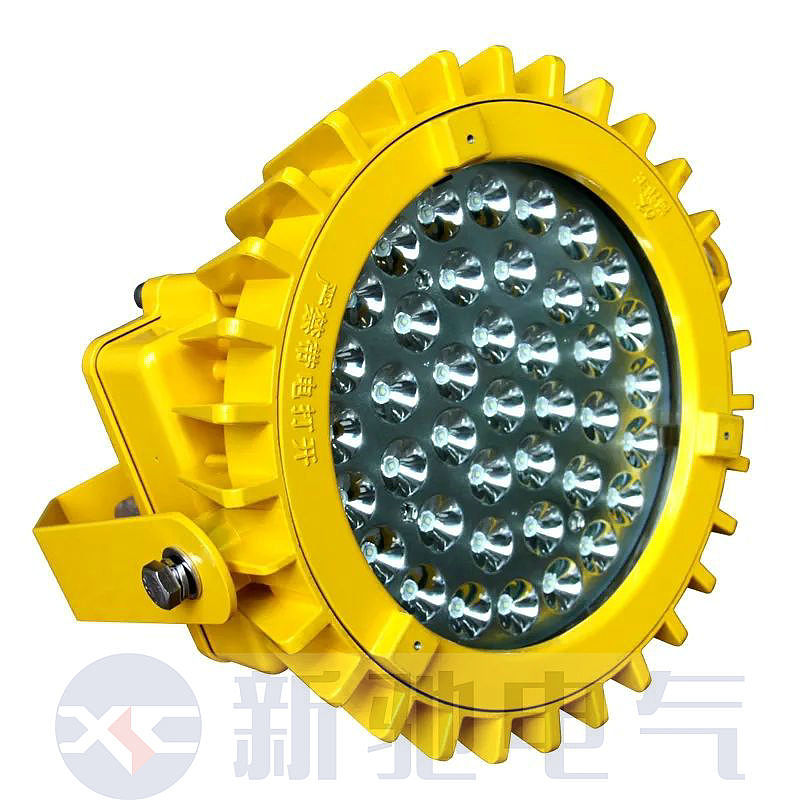

Principle and Application of Circular BFC8125LED Explosion-proof Floodlight in Mine Cave of Chemical Plant;
Scope of application:
1. It is widely used in the explosion-proof indoor and outdoor areas of the first zone with flammable and explosive dangerous gases in oil fields, petrochemical and other industries, providing customers with comfortable and efficient lighting experience.
Technical parameters;
Explosion-proof mark: Ex de mb IICT6 Gb/Ex tD A21 IP66 T80 ℃
Input voltage: AC220V
Light source type: LED
Light source power: 70W
Insulation grade: I
Power factor:>0.95
Protection grade: IP66
Anticorrosion grade: WF2
Weight: 4.7-5.7kg
Introduction port specification: G3/4
Structural characteristics:
1. The product can be used in the IIC gas explosion-proof area of Zone 1, and the temperature group can reach T6. At the same time, it can be used safely and reliably in the dust explosion-proof environment of Zone 21.
2. The product adopts imported LED light source with high luminous efficiency, high luminous efficiency and long service life.
3. The product comes standard with C1-10V dimming interface, which can be used with our controller products to realize intelligent control.
4. The product has a variety of installation methods such as boom, ceiling (U-shaped bracket), side wall (U-shaped bracket), quick installation, etc., which can meet the use of different installation environments.
5. The net cover can be selected to protect the transparent parts from strong impact and avoid damage to the lamps.
Product Features: The product can be used in the IIC gas explosion-proof area of Zone 1, the temperature group can reach T6, and it can be used in the dust explosion-proof environment of Zone 21. The product adopts imported LED light source with high luminous efficiency, high luminous efficiency and long service life. The product is equipped with DC0-10V dimming interface, which can be used with controller products to realize intelligent control.
