After the surface of rhinoceros is cut by a smooth curve, the quality of the cut surface decreases (if there is a better way, please communicate with us)

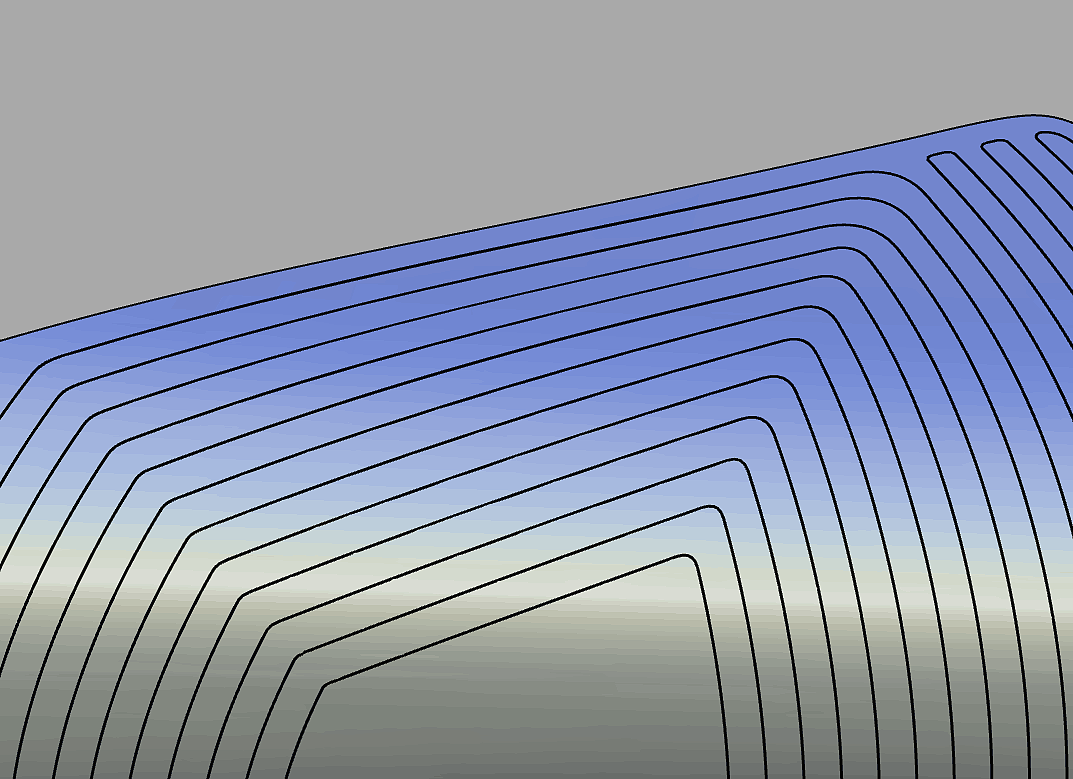

In general, when the surface of a small-sized product needs more texture, we usually choose to draw the lines before cutting.

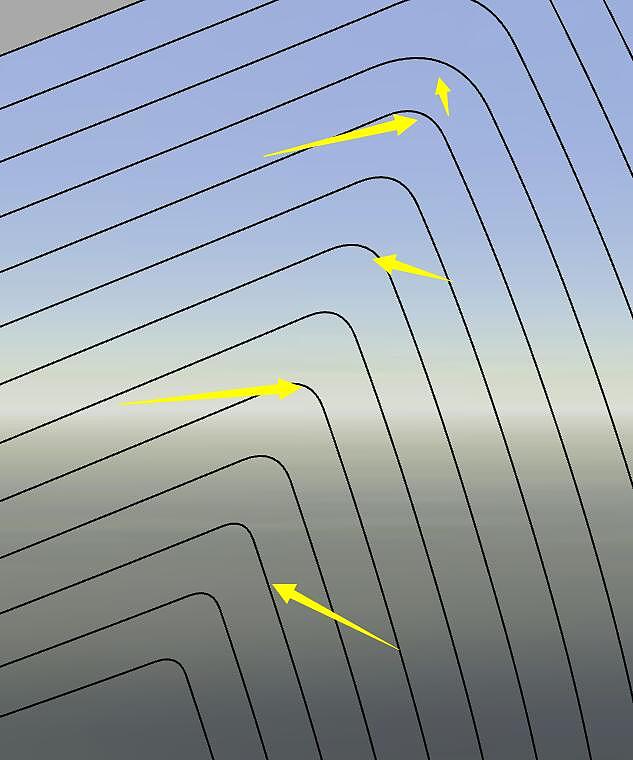

However, even if the line drawing is good, once it is cut out, the quality of the surface will always decrease more or less, especially at the chamfer, there will be excessive difficulties, which will greatly affect the subsequent model making.

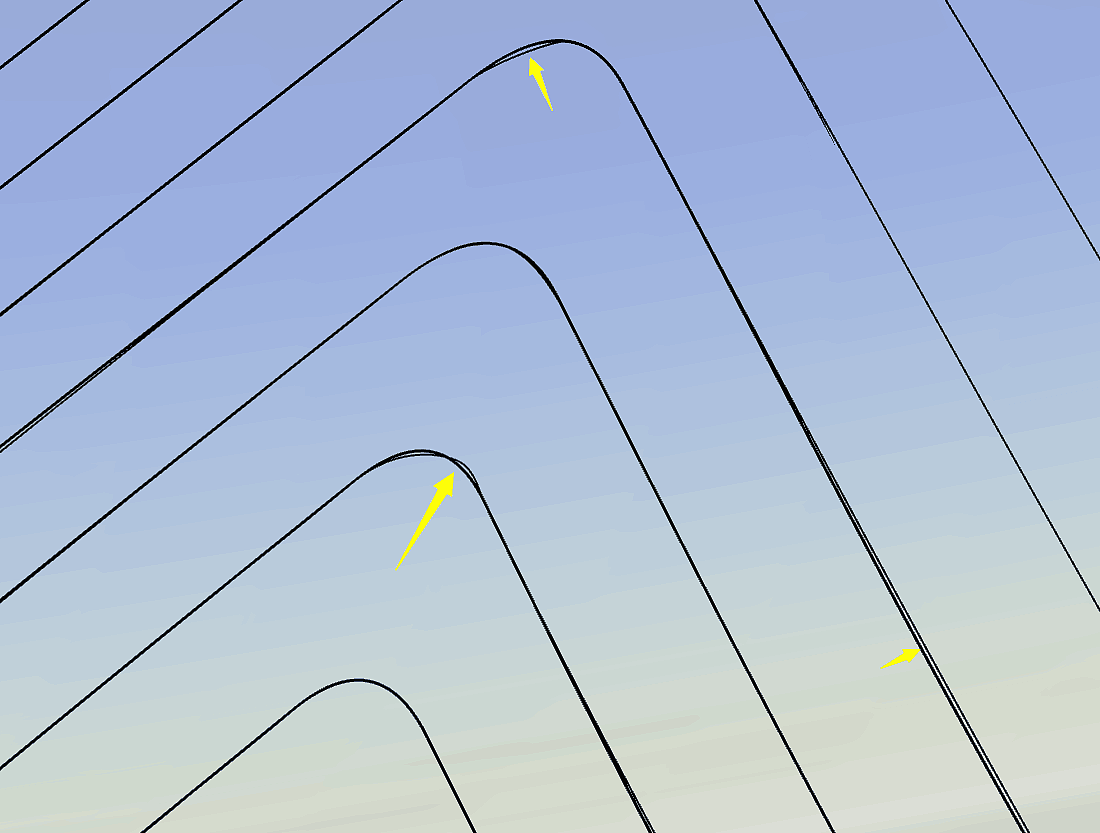

The quality of the chamfer of the cut surface is not very good.

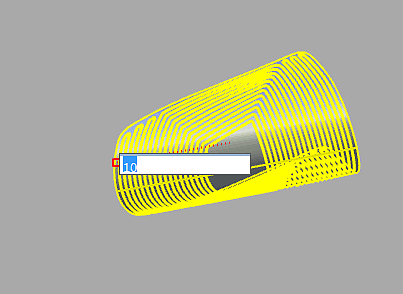

The wild solution provided here is to enlarge the surface 10 times together with the lines, and then use the lines to cut the surface.

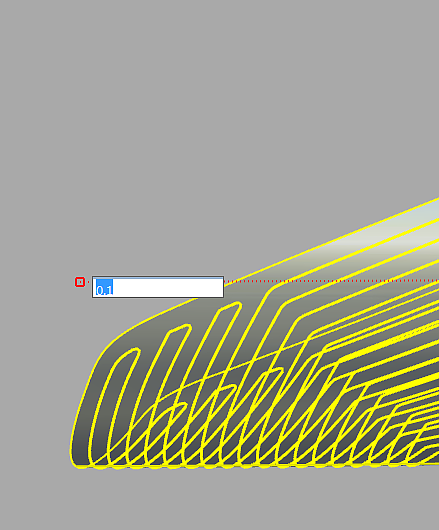

After cutting, it will be reduced by 10 times together with the lines and curved surfaces to return to the original size (note that the enlargement and reduction here must be enlarged and reduced along the center of the object to ensure the accuracy of the position before and after)

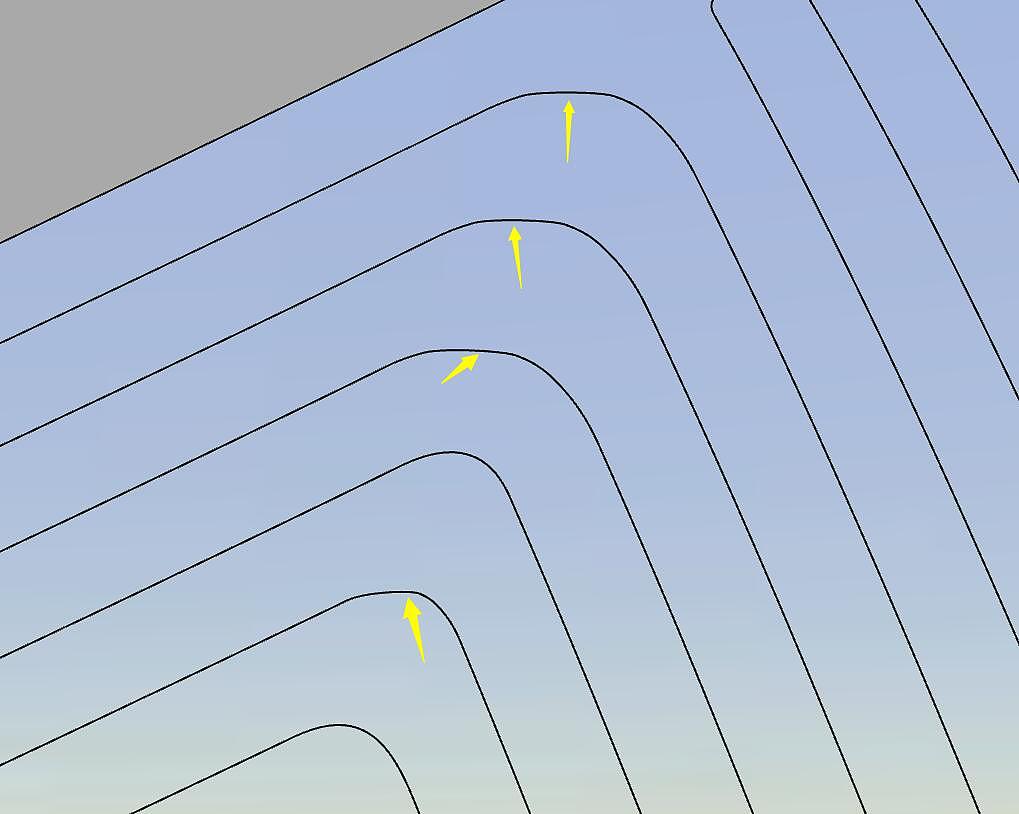

After the above operation, it was found that the quality of the cut surface was indeed improved. As for the reason, personal guess may be because: keep the original small size cut, the data is too small, it is inevitable that there will be calculation errors, so zoom in and then cut can ensure accuracy.
