TWS Wireless Bluetooth Headset Design, Has Captured Your Girl's Heart?

2020-05-07 Digital Intelligence 3566 7 14

瘦龙

China · Digital Intelligence

When designing Bluetooth headsets at ordinary times, the biggest headache is half-entry. To get rid of the shadow of Apple, you have to ensure enough space... the design was done at the edge of the crash. The product manager's voice has been buzzing in his ears, "put on 13MM horn," take a step back and put on 10MM, "" PCB board position is not enough, "" battery should be 40 mA, "" wear must be comfortable, "" 3D print back to see "......

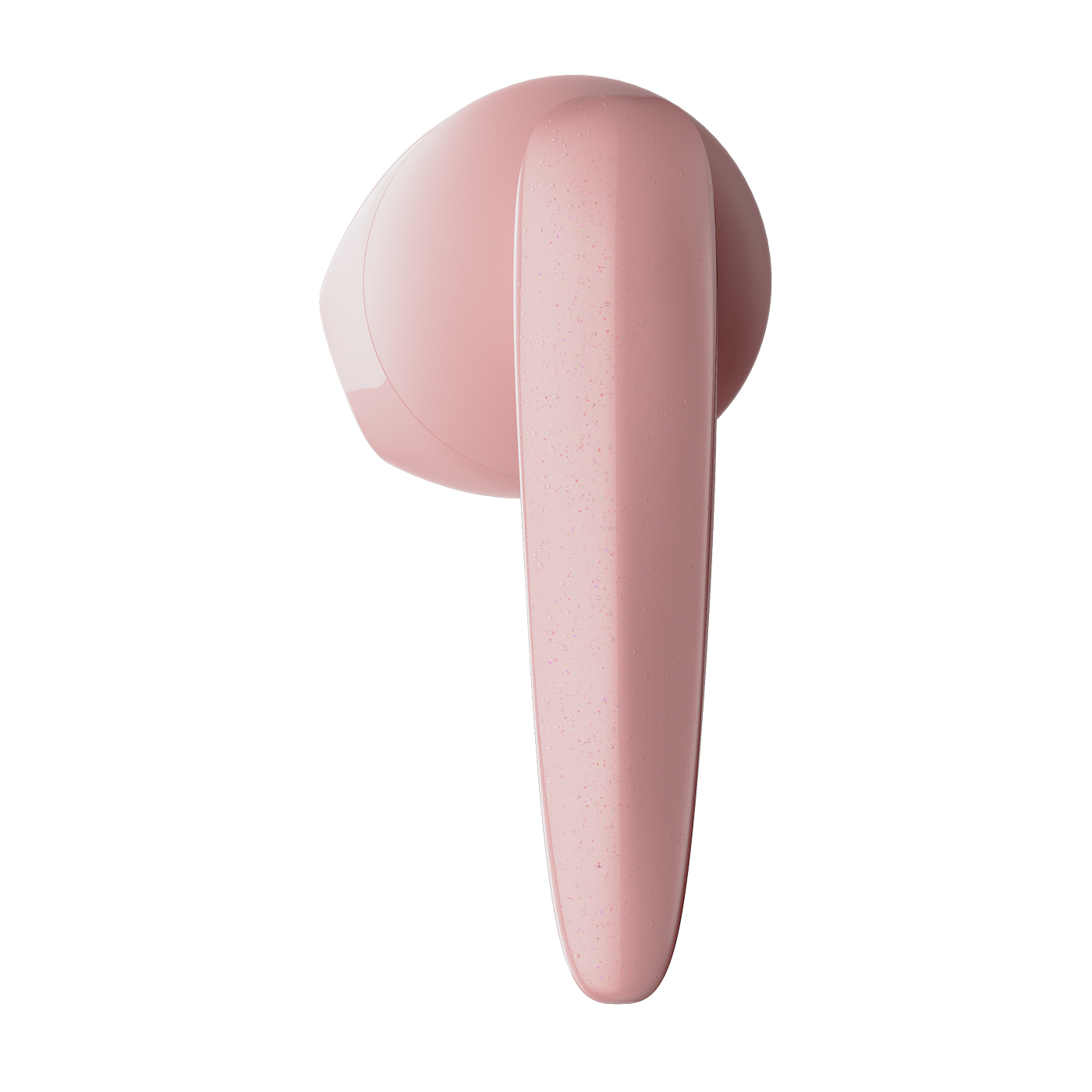

Semi in ear,

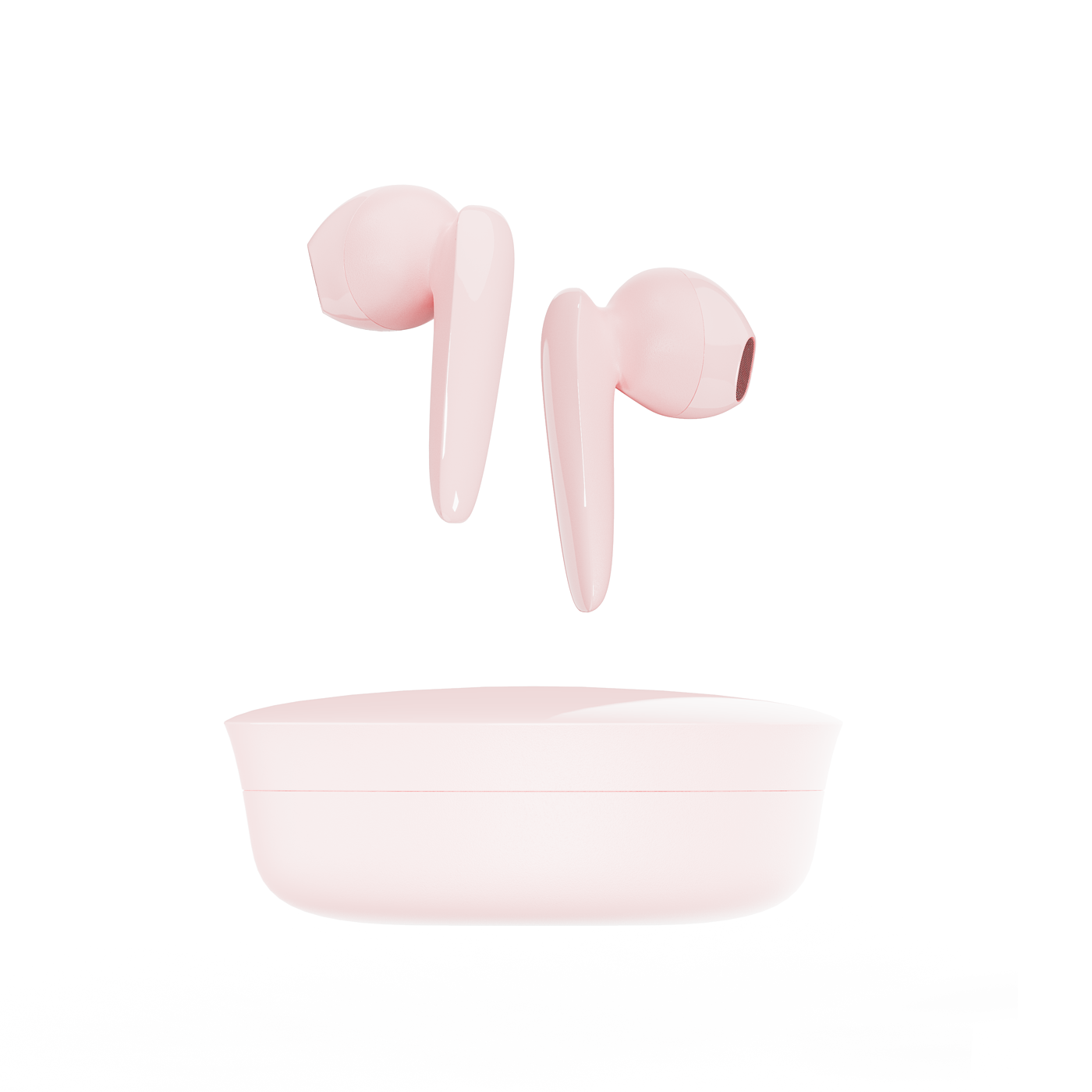

Makeup powder box

Semi in ear,
Semi in ear,

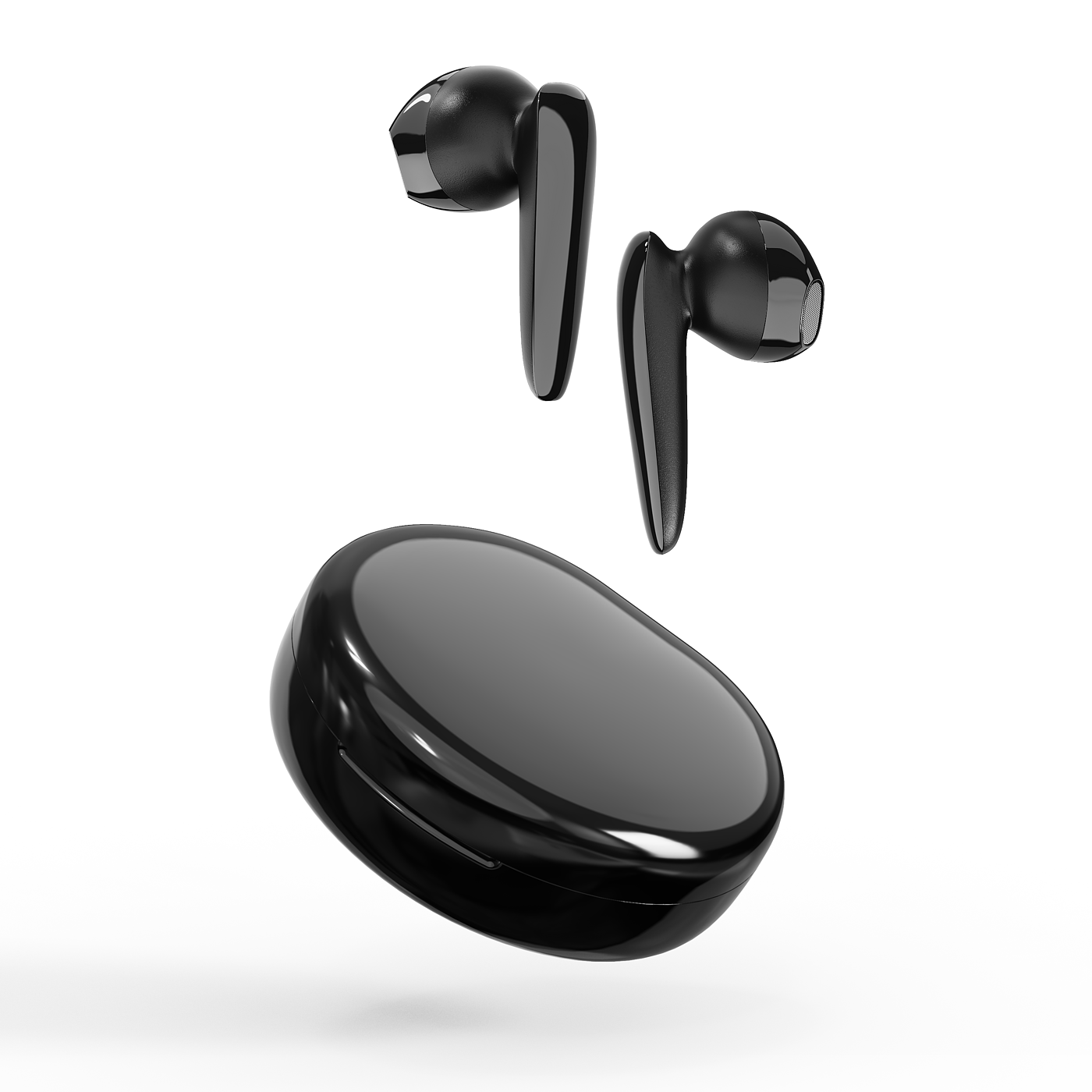

Shell charging box

Semi in ear,
Semi in ear,
14 20
用户其他作品 查看更多
评论

留言板 (7)

祝工助攻 助你成功 2020-05-08
回复

The overall feeling of the earphone is quite good. In the later period, more consideration should be given to the structural problems. After a little adjustment, the problem is not big, but the charging box feels a little big, and the lid of the charging box is inverted according to the ordinary mold, and the unconventional mold cost is too high.

三少爷的贝戋 2020-05-08
回复

I also do earphone ID, the place between the back cover and the mold dividing line of the middle shell is too sharp, and the contact should be relaxed. it is suggested to find out more about the relevant knowledge points of the bottom draft angle mold design. if you do this, there will be problems with the mass production mold, and the clear modeling positioning is also a bright spot.

瘦龙作者 2020-05-08
回复
Thank you for reminding , this project has no structure, just an evaluation, basically no problem. The boss still likes the more stable style of the public
我也说一句
呀呀你好 2020-05-08
回复

The whole is not bad, but I feel the tail of the earphone is too sharp.

瘦龙作者 2020-05-08
回复
Thank you for your advice. It may be that the products made in the past are too masculine. This time, I deliberately moved closer to the feminine direction, and the lines used were smooth and slender.
我也说一句
云中月 2020-05-08
回复

It's not easy, it always feels great when the product comes out

瘦龙作者 2020-05-08
回复
Thank you
