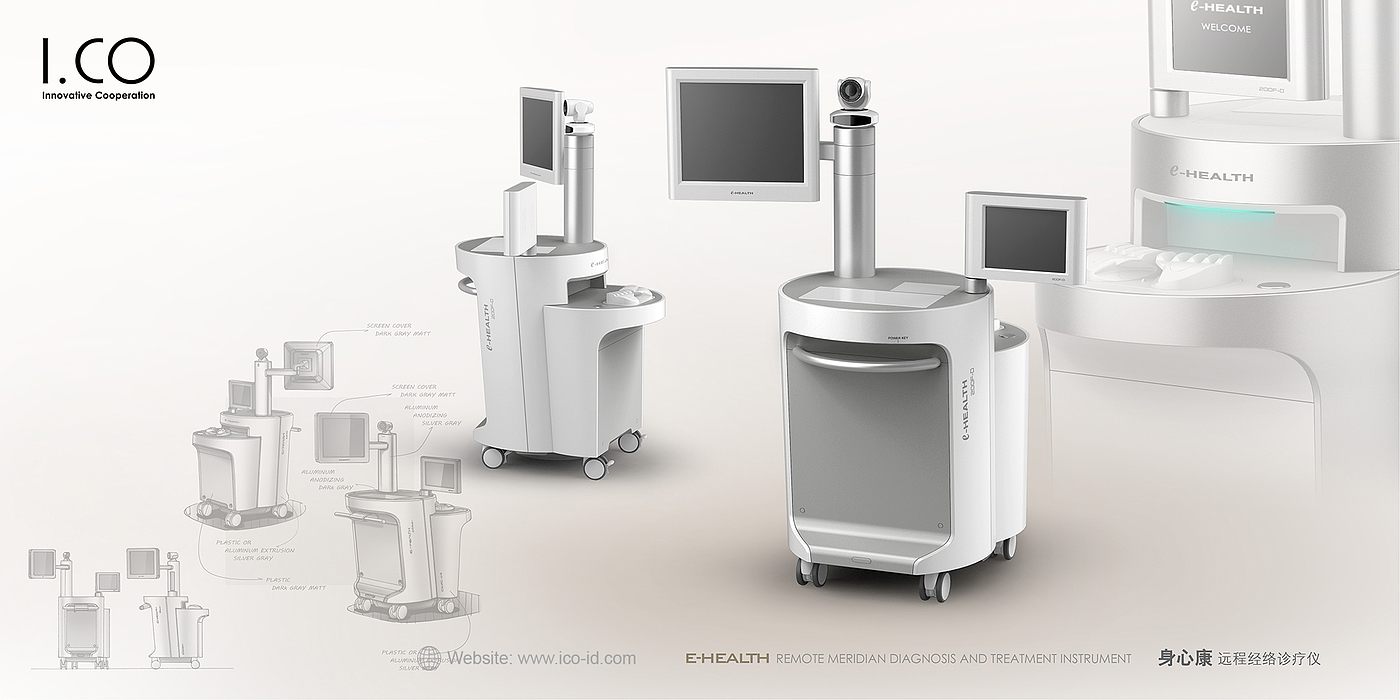

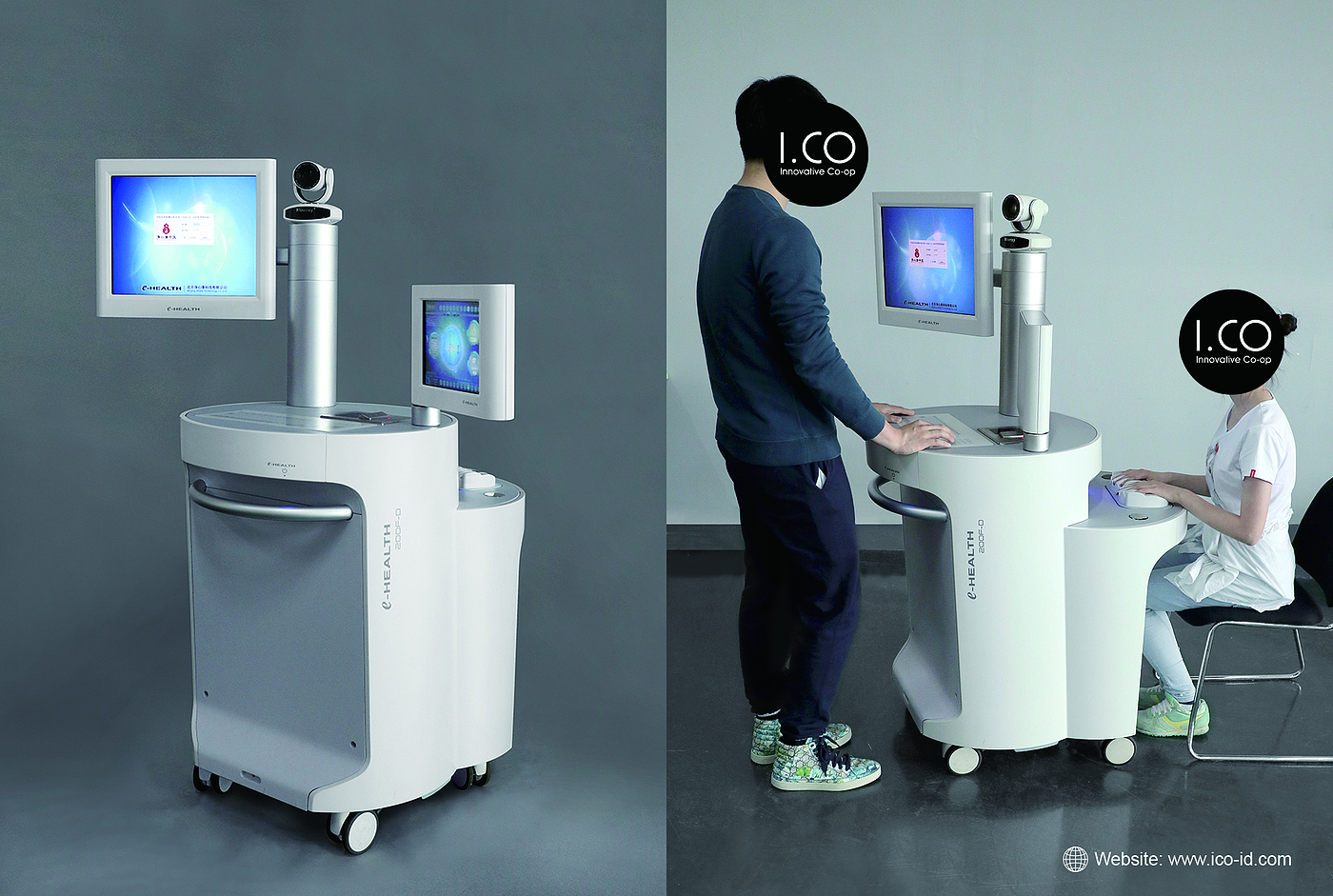

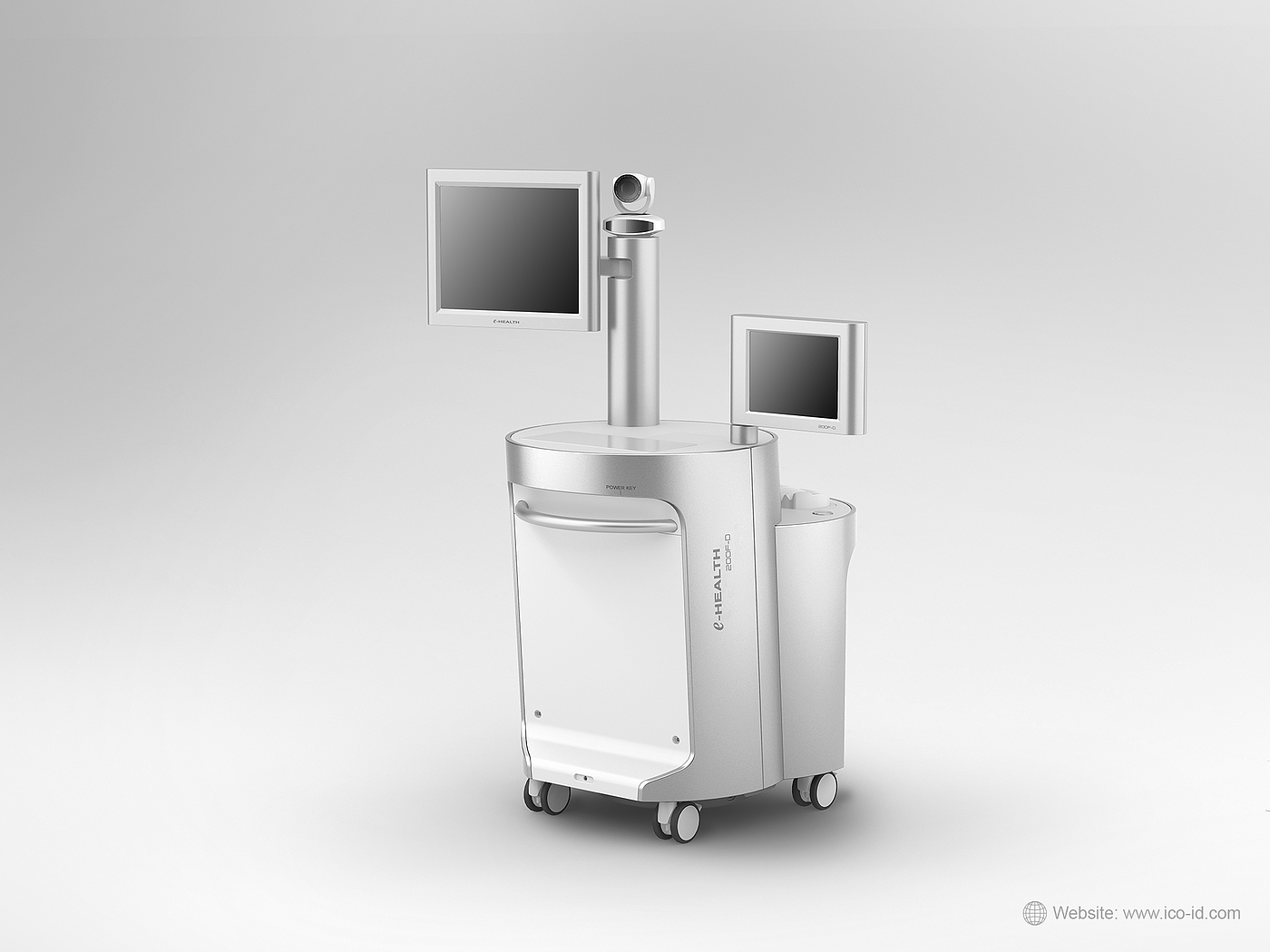

The TCM meridian detector is an independent diagnostic device, which can be integrated into the remote TCM consultation network, which has a positive effect on the equalization of medical resources in some areas, and is convenient for patients to enjoy high-quality health services nearby. The designer combines Chinese elements with minimalist modern design techniques, giving the product abstract and elegant oriental beauty, and full of the beautiful meaning of blending, perfection and endless life. The positions of doctors and patients show a slight oblique layout, which meets the needs of Chinese medicine diagnosis and treatment for an open environment.

The traditional Chinese medicine meridian detector takes the theory of traditional Chinese medicine as the core, adheres to the philosophical thinking of the holistic view of traditional Chinese medicine, and uses the meridian theory of traditional Chinese medicine, the diagnosis and treatment experience of famous and old Chinese medicine, etc., with modern information, computer, electronics, artificial intelligence, and big data calculation and analysis technology. The combination of Chinese medicine has brought Chinese medicine into a new era of data, visualization, objectification, informatization, and.

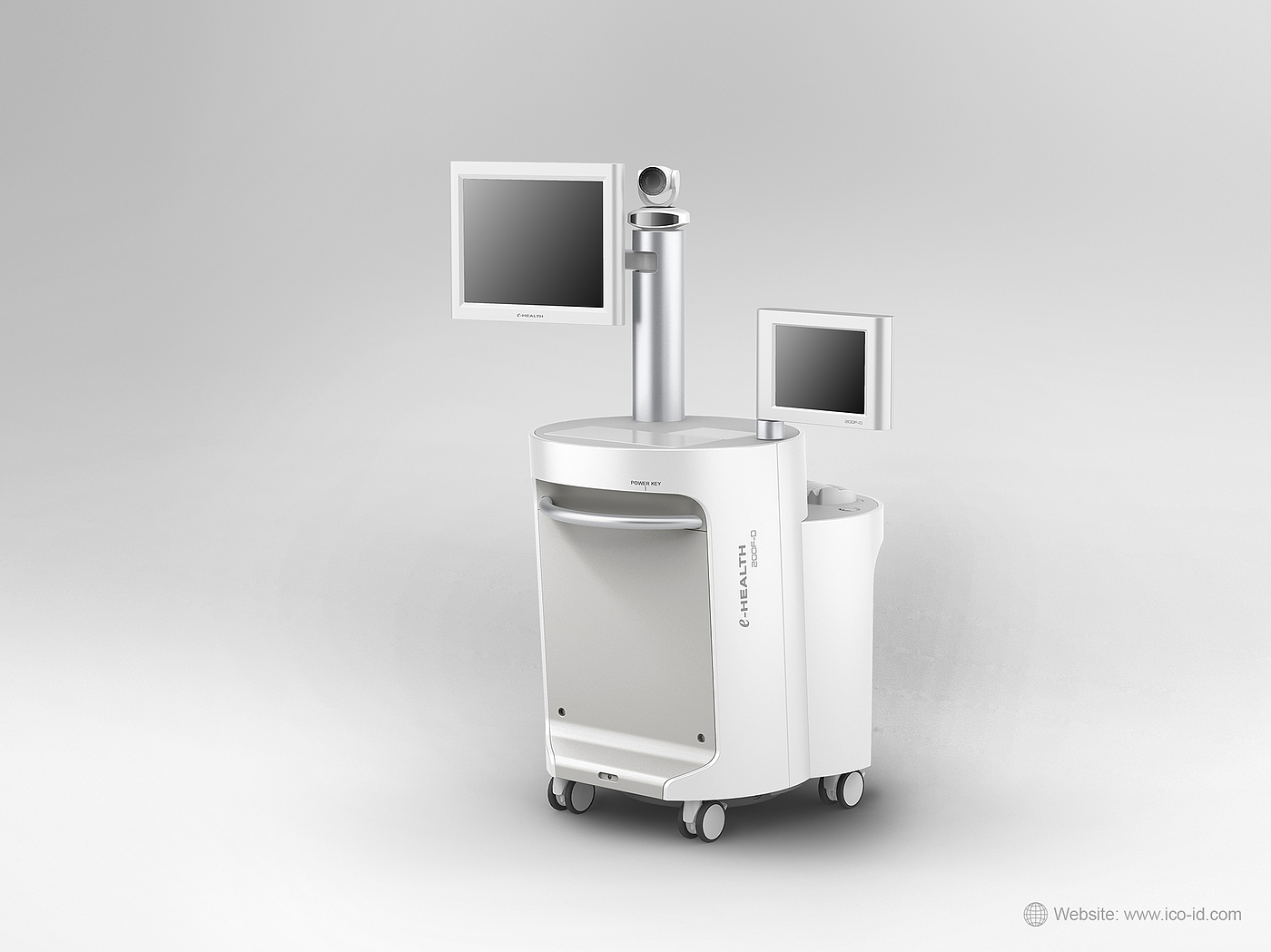

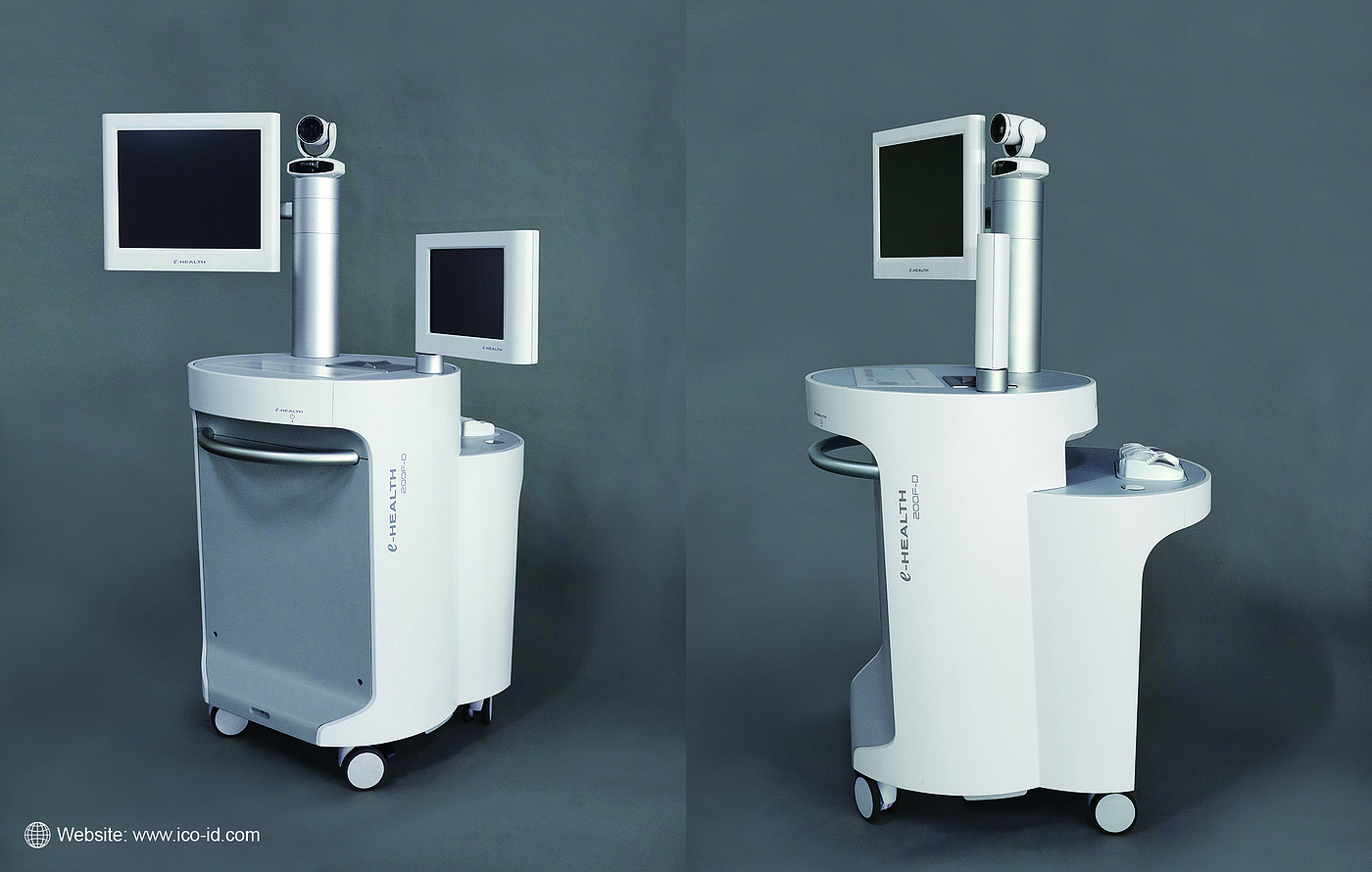

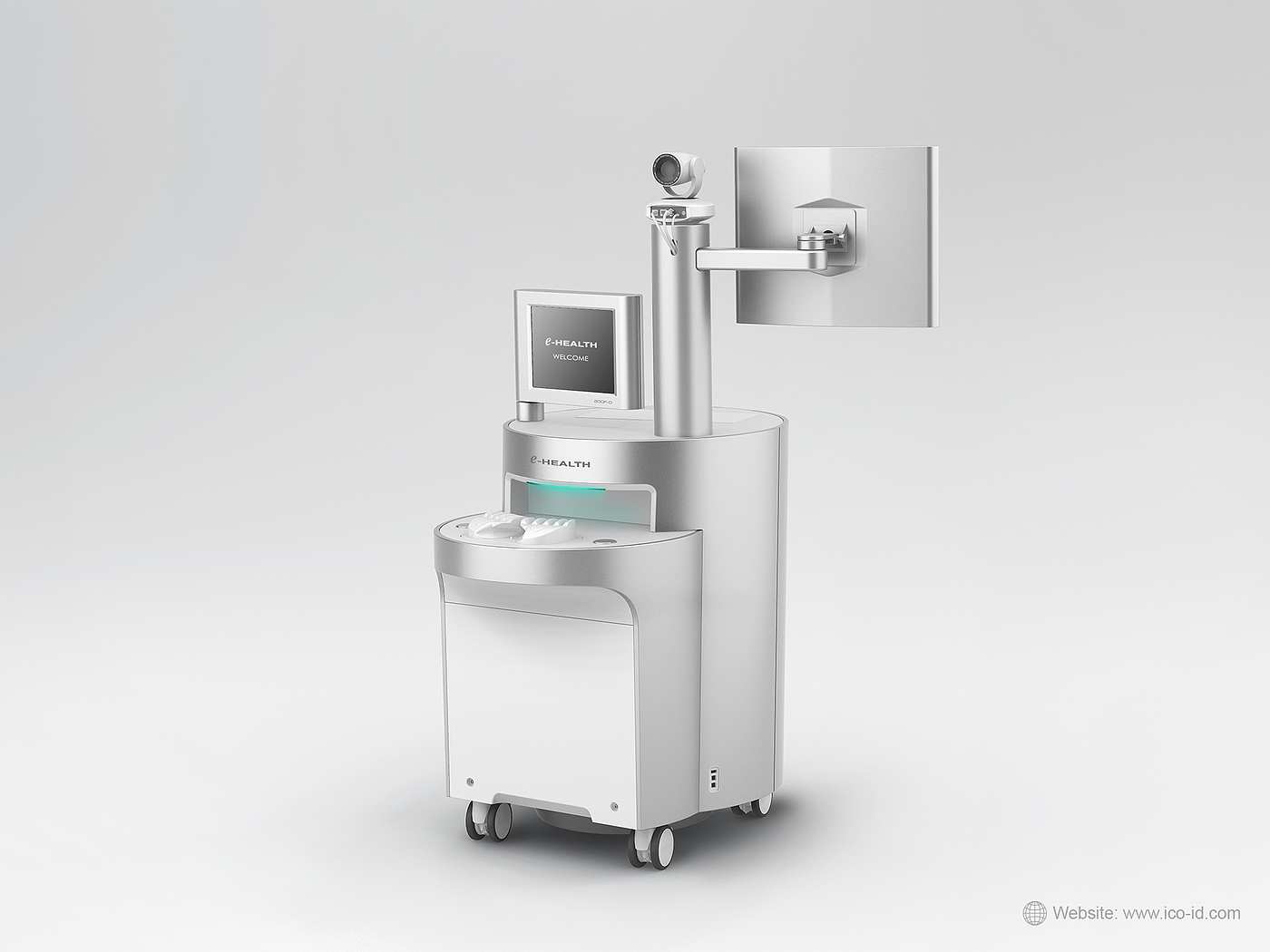

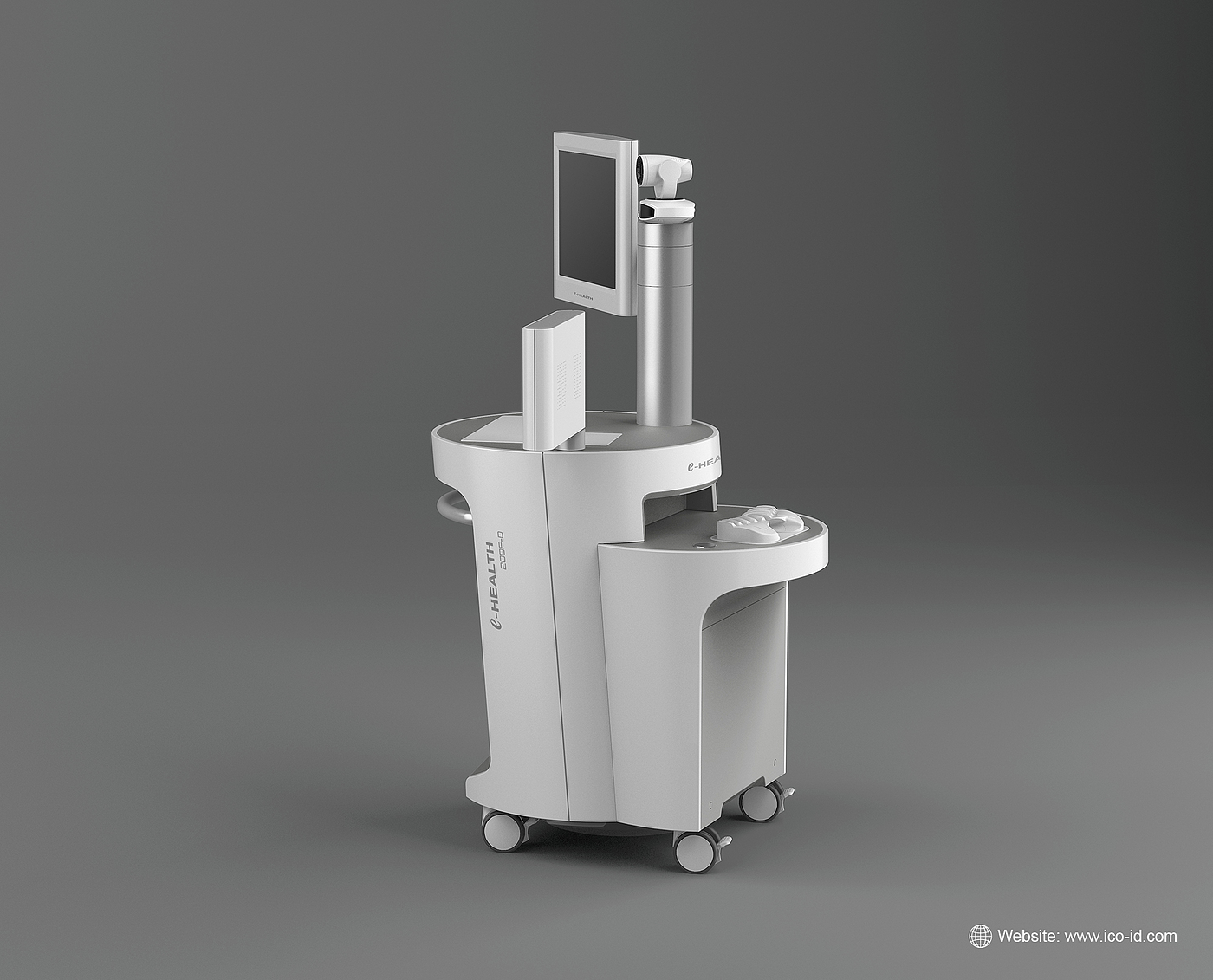

The design is inspired by "circle" and "water", two Chinese elements that are easy to abstract. Among them, "circle" is widely used in the design of Chinese classical architecture and clothing. Looking down on the product, two circles of different sizes are scattered and interdependent, reflecting the meaning of blending and perfection. And the two circles are dependent on each other like ripples in the "water", rippling far away, full of the beauty of the ancient oriental artistic conception! At the same time, "water" moistens all things and is endless, which also implies a good blessing for health! In addition, the designer combines Chinese elements with extremely simple modern design techniques, and matches elegant color matching, making the product full of "Zen" and more elegant!

With the help of digital technology, throughout the entire diagnosis and treatment process, the data generated can be effectively managed, the ability of TCM diagnosis and treatment services can be improved, and the work efficiency of TCM doctors can be improved. At the same time, for intractable diseases, this equipment can build a remote consultation platform to help patients obtain more timely and accurate diagnosis and treatment. In addition, this product will also be put into some underdeveloped areas, which will play a very positive role in the equalization of the medical level of traditional Chinese medicine in some regions of our country.

Benefiting from the accurate diagnosis results of the equipment and the gradual improvement of the remote consultation network platform, patients will be able to enjoy high-quality TCM diagnosis and treatment services nearby, saving physical strength, energy, financial resources and time investment. In order to further speed up the product launch, we have formulated a reasonable cost strategy, using "vacuum blister" as the molding process of the main appearance parts, while optimizing and reducing the number of parts, effectively reducing the one-time investment of the mold, in order to adapt to the limited annual output at the initial stage of product launch.

TCM meridian detector is not only an independent diagnostic equipment, but also can be integrated into the remote consultation network as a terminal. Its extensive investment will undoubtedly promote the equalization of the medical level of traditional Chinese medicine in various regions of our country, which will greatly save the medical resources of the society. I believe that the positive effect of this on environmental protection in our country will be very significant!

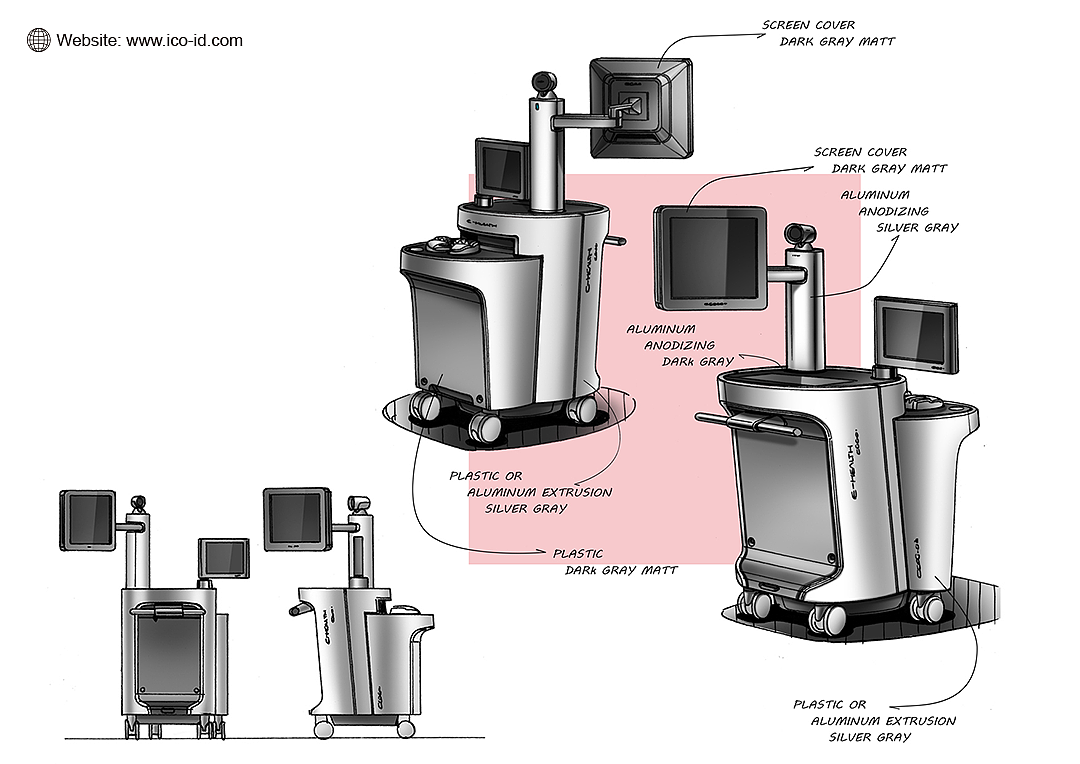

The internal sheet metal frame of the product is calculated by computer strength simulation, and the minimum material is exchanged for the highest structural strength. At the same time, high-precision welding is used as far as possible to replace the poor controllability and complicated manual assembly. The appearance of the product adopts the "vacuum blister" molding process. For this, the curved surface of the product should be as simple and simple as possible, and the number of parts should be compressed to the minimum, at the same time, the parts scheme should fully take into account all aspects of assembly, maintenance, strength, beauty and cost.

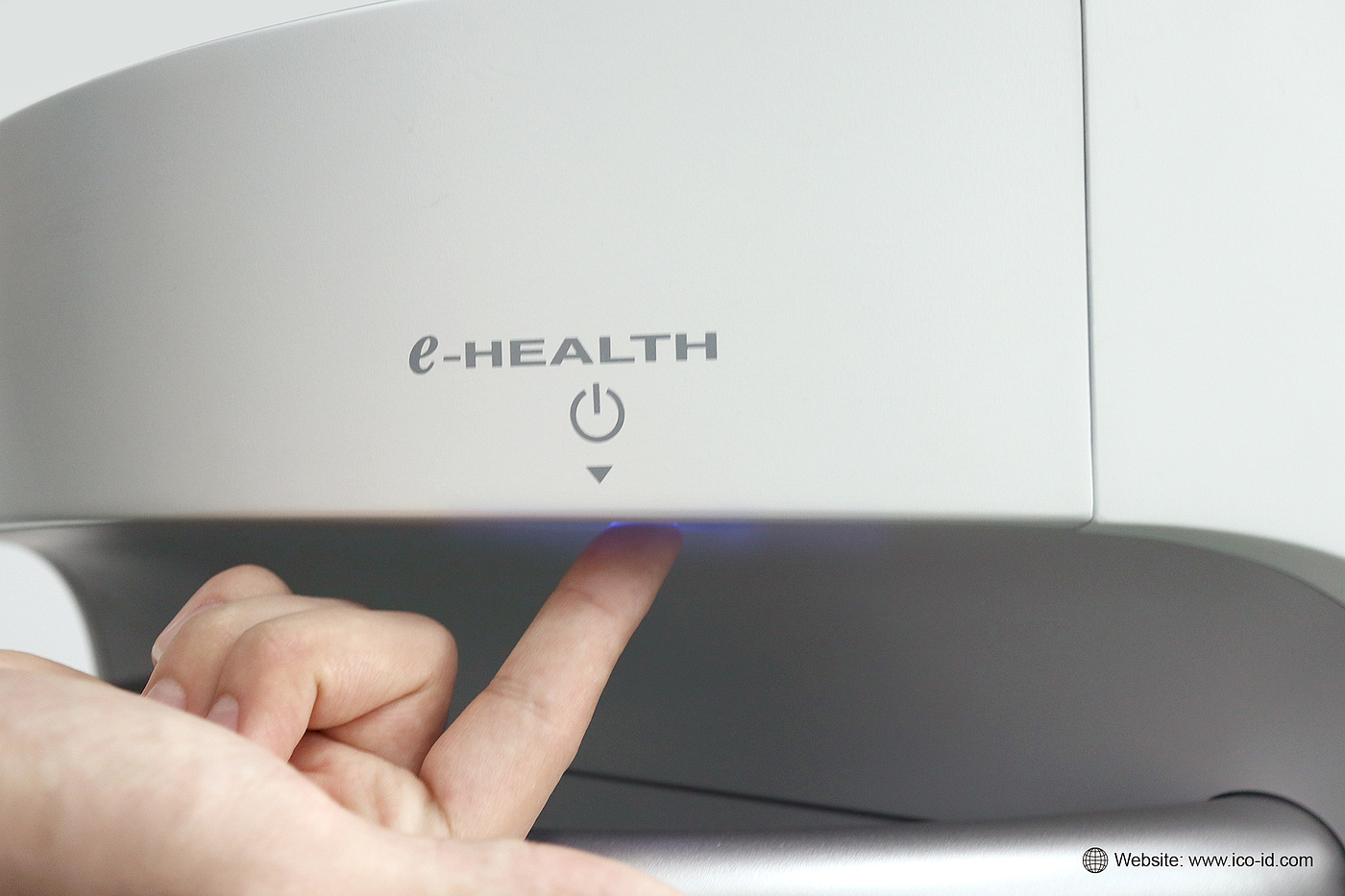

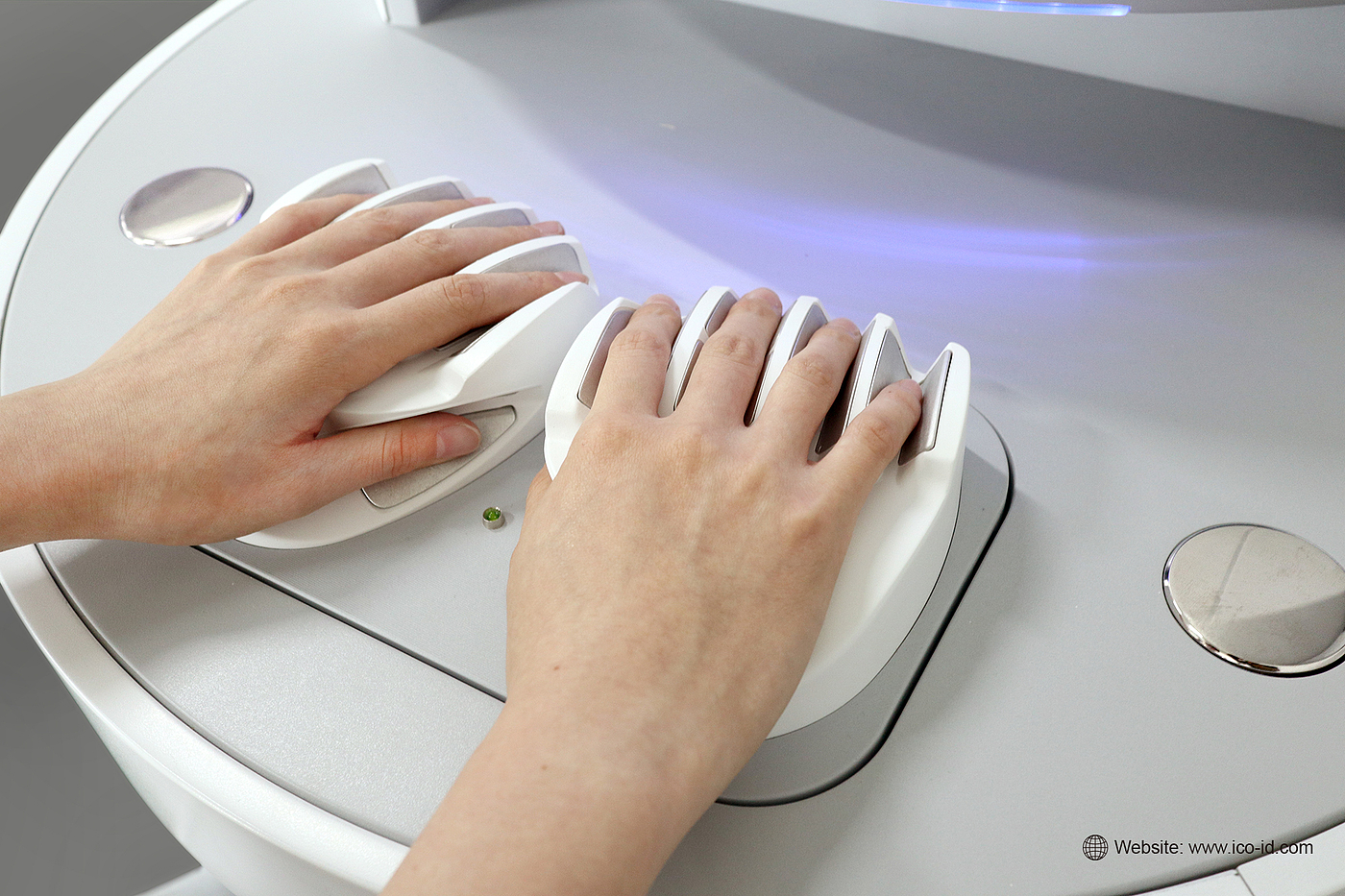

The TCM meridian detector can receive the detection data of the patient's 24 meridian reflection areas, and after calculation and analysis, the change trend of the human meridian is obtained. The use of the instrument is very simple. In the state of connecting the power source and the network, first click the switch button, and then the patient places his hands in the detection position. The doctor uses the software operation to interpret and present the detection information with the theory of Chinese medicine to help Chinese medicine Doctors diagnose and treat patients more conveniently.
