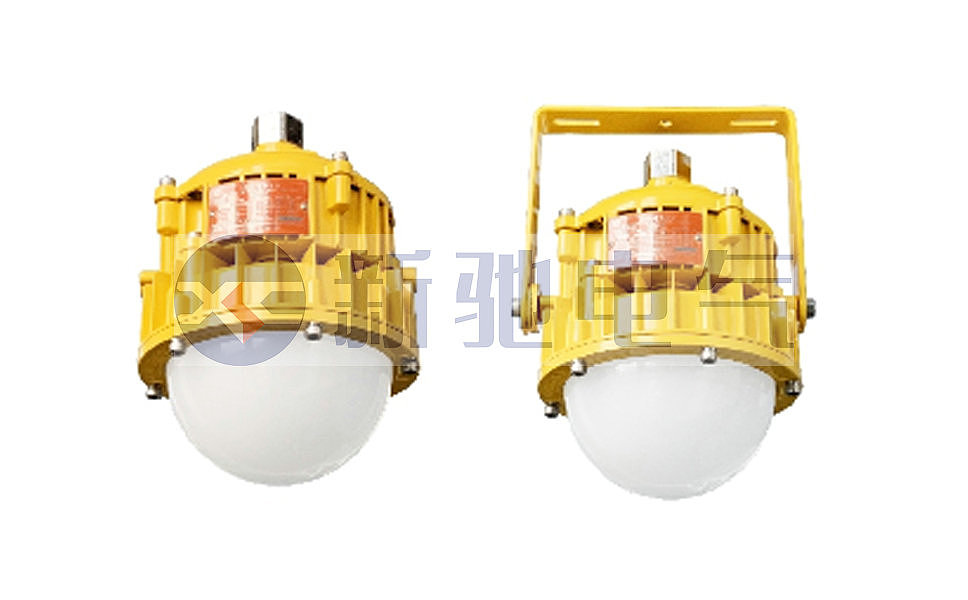

BPC8767-50W LED explosion-proof platform lamp is directly supplied by Wuhan manufacturers;
Scope of application:
It is suitable for large-area floodlighting in various refining and chemical plant platforms in petroleum and petrochemical industries and indoor and outdoor, corridors, operation sites and other places with explosion-proof requirements.
Technical parameters;
Explosion-proof mark: Ex de mb II C T5/T6 Gb Ex tD A21 IP65 T95 ℃/T80 ℃
Input voltage: AC220V
Input frequency: 50Hz
Light source type: LED
Light source power: 30W, 50W
Luminous flux: 2800lm/4300lm
Average service life: ≥ 50000h
Insulation grade: I
Power factor:>0.95
Protection grade: IP65
Anticorrosion grade: WF2
Weight: 3.7Kg (ceiling/bending rod) 4.2kg (vertical rod)
Introduction port specification: G3/4
Operating ambient temperature:-20 ℃-40 ℃
Applicable cable specifications: Φ9mm ~ Φ14mm
product characteristics;
1. This product has been certified by the national organization for explosion-proof, IIC grade explosion-proof form, and can be used safely in areas 1 and 2 with IIC explosion-proof requirements.
2. The structural design meets the waterproof requirements, and the protection level of the product shell reaches IP65, which can be used reliably in indoor and outdoor places.

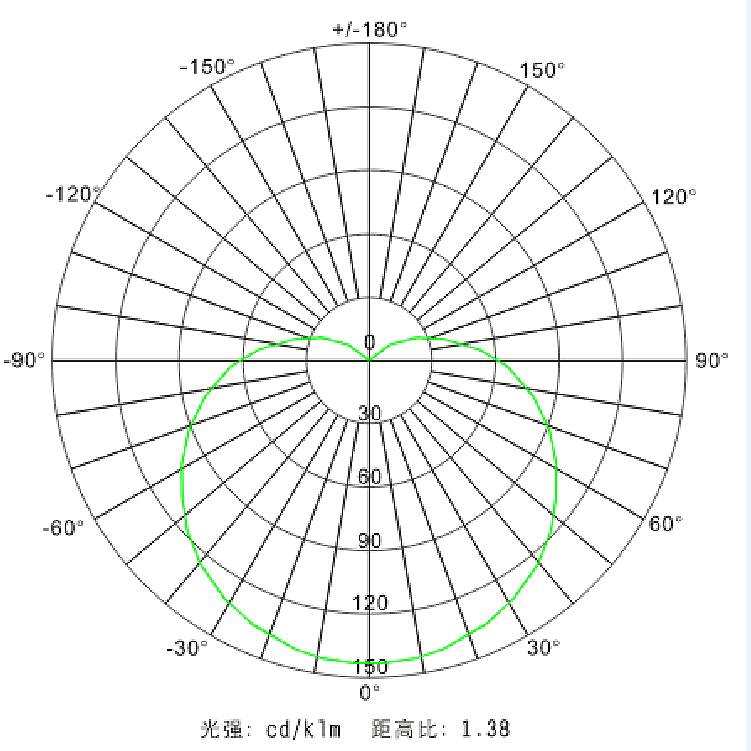

3. Lamps and lanterns adopt ring-shaped light distribution design, with large lighting range, wide angle and uniform illuminance to avoid blind spots of lighting.
4. The diffusion anti-glare light distribution design is adopted to effectively control the glare, the optical fiber is soft, and the visual fatigue of the staff is reduced.
5. The drive circuit adopts pouring seal and explosion-proof design, which not only meets the explosion-proof requirements, but also plays the role of heat dissipation and waterproofing, with good reliability.
6. It has installation methods such as bent rod type, ceiling type, guardrail type, flange type, hanging pipe type, etc. to fully meet the installation requirements of different environments.
