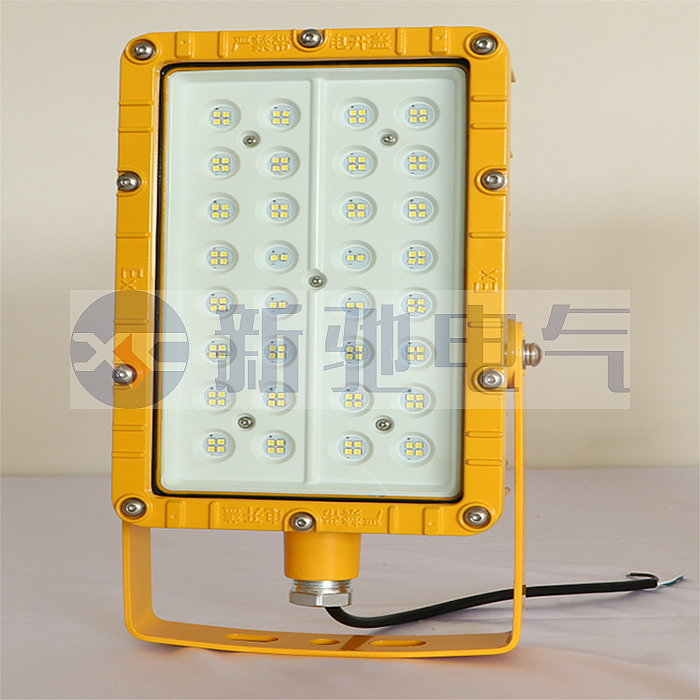

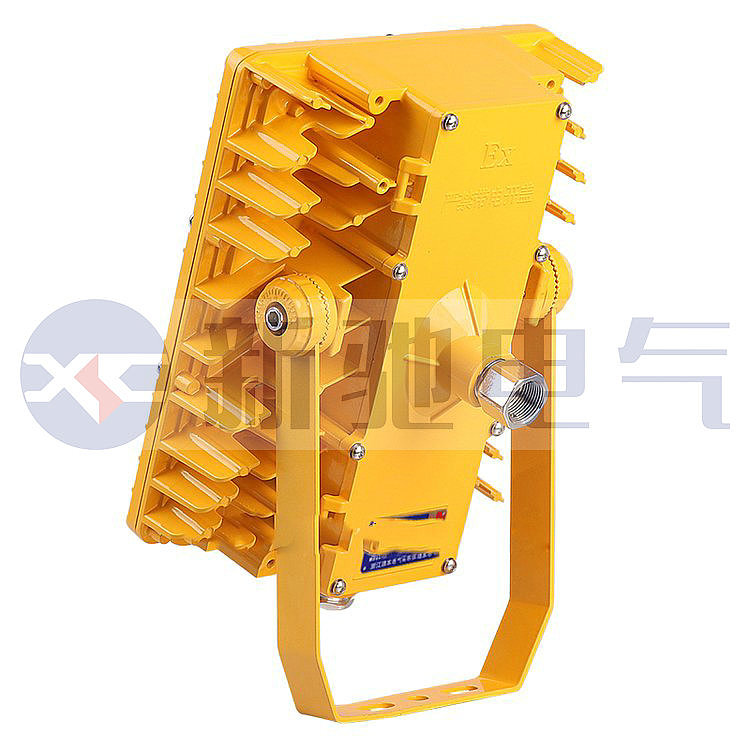

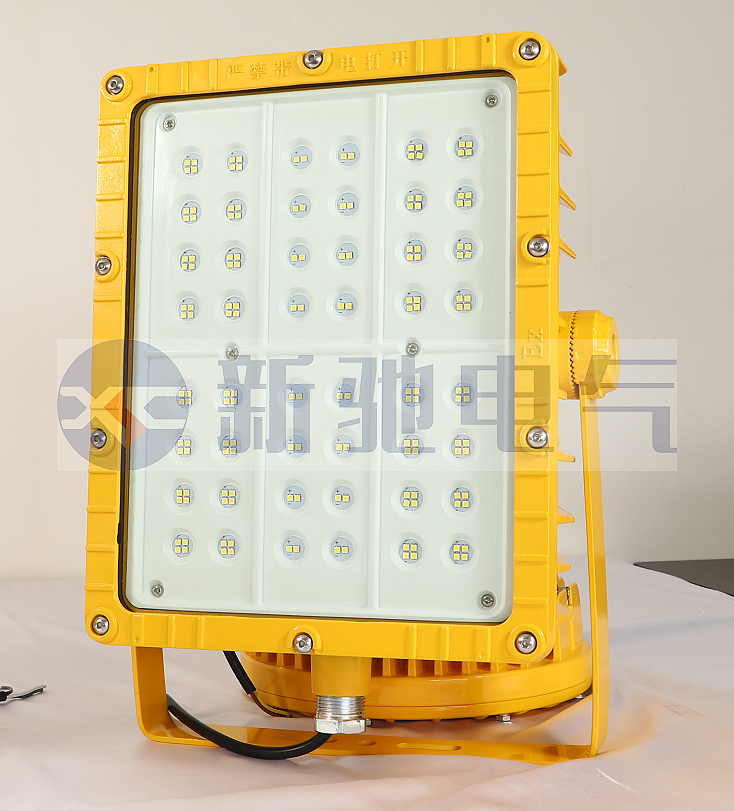

BFC8115ALED explosion-proof floodlight 100W;
Scope of application:
1. The products are widely used in petroleum, chemical enterprises and other industries, and are used in explosion-proof zone 2 with flammable and explosive dangerous gases, which can provide floodlighting for customers' on-site night construction operations: provide floodlighting for night construction operations:
2. The product can be used as road lighting in petroleum, chemical enterprises and other industries with flammable and explosive dangerous gases.
BFC8115ALED explosion-proof floodlight 100W;
Technical parameters:
1. Explosion-proof sign: ExnR nCT5 Gc Ex tD A21 IP66 T95C
2. Rated voltage: AC 220 50Hz
3. Dimming voltage: DC0-10V
4. Light source:(LED)
5. Rated power: 100
6. Luminous flux: 96001(100)
7. Average service life: 5000
8. Operating ambient temperature: -20C ~ 40C
9. Outer diameter of incoming cable: φ 9mm ~ φ 10mφ 1m ~ φ 12mm φ 13mm ~ φ 14m
10. Overall dimensions: 325mx 240mx 15m100
11. Weight: 7kg
12. Enclosure protection grade: IP66
13. Anticorrosion grade: WF2
Structural characteristics:
1. Safe and explosion-proof, this product can be used safely in explosive gas environment in Zone 2, and can be used safely in explosive dust environment in Zone A21.
2. Good sealing performance, protection grade up to IP66, and excellent anti-corrosion performance, can be used in the sun and rain environment for a long time.
3. Adopt internationally renowned brand LED light source, high luminous efficiency and long life.
4. The product has a DC0-10V dimming interface, which can be matched with a dimming switch or an intelligent lighting system with 0-10V dimming function to realize the brightness adjustment function and reduce the lighting waste on the lighting site.
5. Optional PC anti-glare cover can effectively reduce the discomfort caused by lamp glare to human eyes.

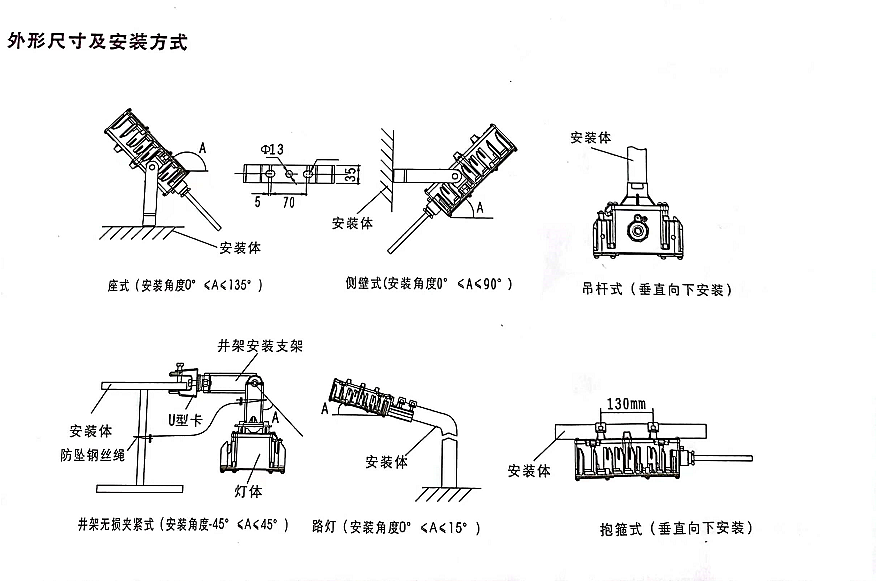

6. The product has a variety of installation methods such as seat type, side wall, boom, hoop, street lamp pole, etc. to meet different on-site installation requirements of customers.
